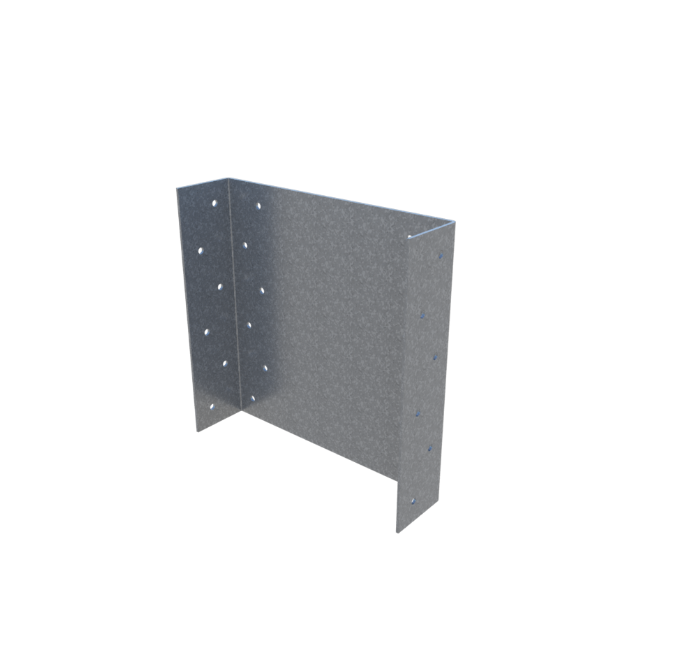

ClarkDietrich 362BHC10-54 BOX HEADER CLIP

PRE-PUNCHED CLIP FOR BOX HEADER FRAMING

The Box Header Clip (BHC) is designed to eliminate field cutting metal track into sections. The BHC clip is pre-punched to promote a quick and accurate installation. It is available in a variety of sizes and thicknesses to accommodate different application requirements.

Product Data & Ordering Information

Product code Gauge Mils Designthickness (in) Size (in) Pcs./Bucket 362BHC10-54 16 54 0.0566" 3-5/8 X 1-1/2 X 10" 50 Material Structural Grade 50 Type H (ST50H), 50ksi Coating G90 (Z275) hot-dipped galvanized coating INSTALLATION Refer to load tables for appropriate box header clip. All pre-punched holes must be filled by placing #10-16 screws to achieve noted capacities
