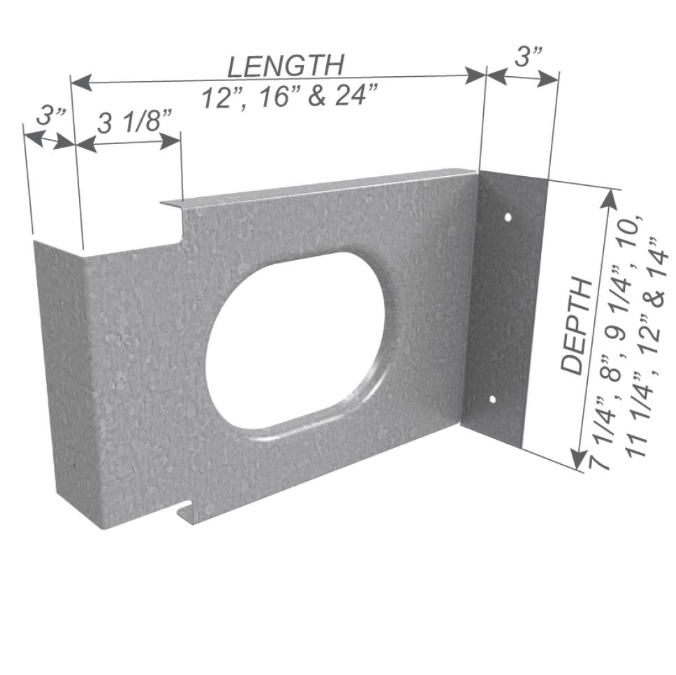

ClarkDietrich 1400JB16 TradeReady Floor Joist Blocking - 14 in. joist, 16 in. o.c., 16 ga

Pre-cut to fit 16" on-center spacing, 1400JB16 is TradeReady® floor joist blocking for 14" joists. Solid blocking is an economical alternative to tension bracing or diagonal strapping in cold-formed steel floor framing, and the pre-punched connection legs speed attachment to each joist.

Product Information

• Thickness: 54 mil (16 gauge), 0.0566 in. design thickness
• Joist depth: 14"
• Joist spacing: 16" on center
• Extruded hole: 6-1/2" x 9"
• Yield strength: 50 ksi
• Coating: G90 (Z275) hot-dipped galvanized
• Pre-punched connection legs for attachment to each joist
• Complies with the International Residential Code (Section R505.3) for solid blocking in steel floor joist systems
• Common applications: floor joist blocking, joist rotation control, mechanical pass-through in floor framing

Packaging: Sold individually or by the box of 10.

Manufacturer: View the TradeReady® Floor Joist Blocking page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
