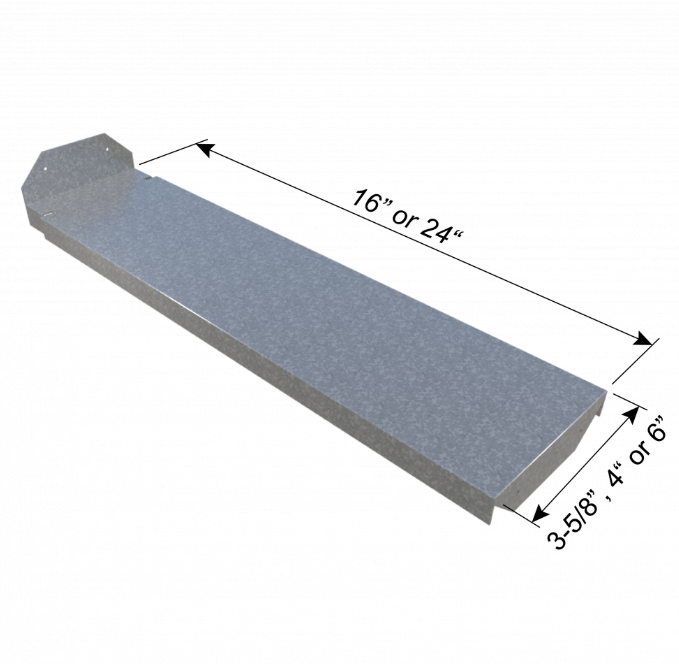

ClarkDietrich 3.625 WEB 16IN OC BLAZEFRAME® SHIELD 16G - FS316-54

54MIL BLAZEFRAME® SHIELD SYSTEM

ClarkDietrich’s BlazeFrame Shield is specifically designed to meet the requirement of horizontal fire blocking inside the wall system and between floor levels. BlazeFrame Shield system simply installs by twisting into stud flanges and screwing into stud webs. The one piece preformed assembly eliminates cutting, notching and attaching clips. Installs quickly and easily without clips Available for 16" 3-5/8" wide 54mil (16ga) Pre-notched for use on structural studs

Product Data & Ordering Information

Thickness 54mils (16ga) 0.0566” design thickness, 0.0538” minimum thickness Yield Strength: 50ksi for 54mils Coating: CP60 DIMENSIONS: Horizontal leg: 1”Connection tabs: Top: 2”, Bottom: 1-1/2”Width: 3-5/8”Lengths: For 16" stud spacing

ASTM & Code Standards

Structural framing is produced to meet or exceed ASTM C955 Galvanized sheet steel meets or exceeds requirements of ASTM A1003 SDS & Product Certification Information
