ClarkDietrich FS416-54 BlazeFrame Shield Fire Blocking - 4 in. stud, 16 in. o.c., 16 ga

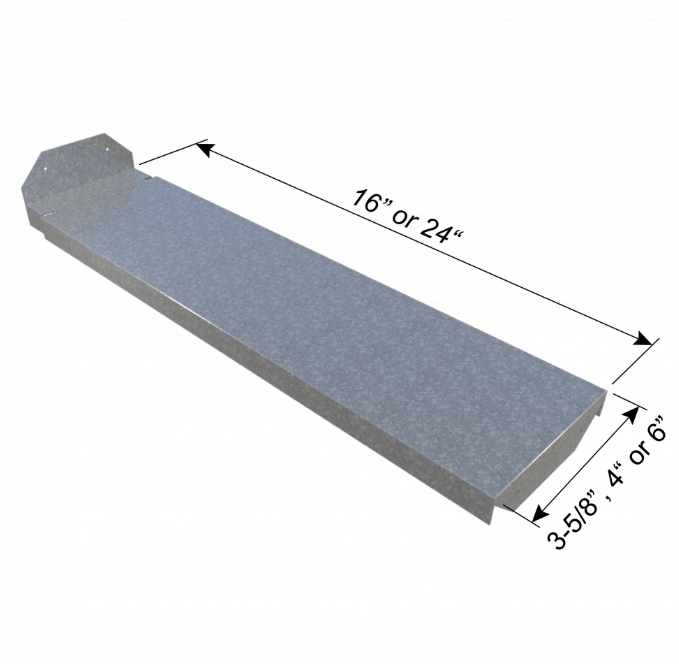

FS416-54 is a BlazeFrame® Shield section for 4" studs at 16" on center, formed from 54mil (16ga) steel. It provides the horizontal fire blocking required inside a wall cavity and between floor levels, twisting into the stud flanges and screwing to the webs as one preformed piece.

Product Information

• Thickness: 54 mil (16 gauge), 0.0566 in. design thickness
• Stud width: 4"
• Stud spacing: 16" on center
• Coating: CP60
• Horizontal leg: 1"; connection tabs 2" top, 1-1/2" bottom
• Pre-notched for structural studs; one-piece preformed assembly
• Common applications: horizontal fire blocking in wall cavities, fire blocking between floor levels

Packaging: Sold individually.

Manufacturer: View the BlazeFrame® Shield page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
