ClarkDietrich 925JB12 TradeReady Floor Joist Blocking - 9-1/4 in. joist, 12 in. o.c., 16 ga

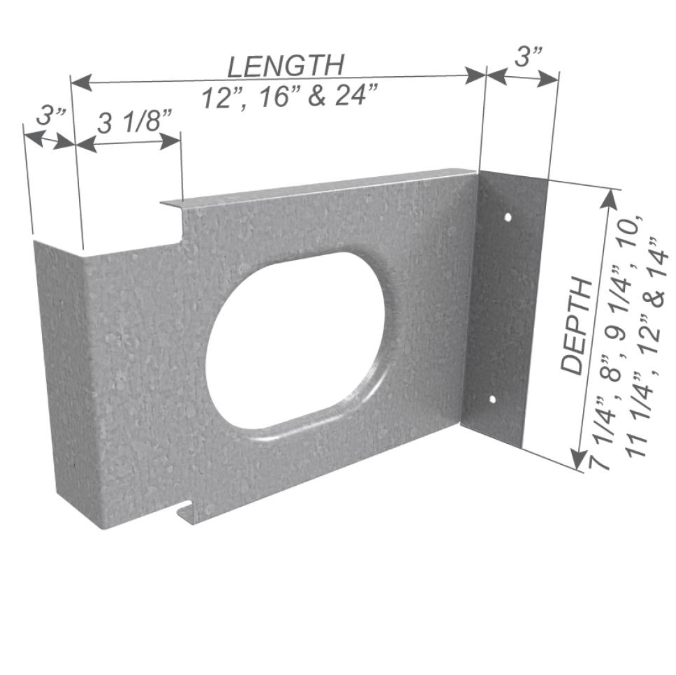

925JB12 is a 9-1/4" deep TradeReady® floor joist blocking section pre-cut for 12" on-center joist spacing. It drops in between joists to stop rotation, and the large extruded hole in the web lets HVAC, plumbing, sprinkler, and electrical runs pass straight through the blocking line.

Product Information

• Thickness: 54 mil (16 gauge), 0.0566 in. design thickness
• Joist depth: 9-1/4"
• Joist spacing: 12" on center
• Extruded hole: 6-1/2" x 9"
• Yield strength: 50 ksi
• Coating: G90 (Z275) hot-dipped galvanized
• Pre-punched connection legs for attachment to each joist
• Complies with the International Residential Code (Section R505.3) for solid blocking in steel floor joist systems
• Common applications: floor joist blocking, joist rotation control, mechanical pass-through in floor framing

Packaging: Sold individually or by the box of 10.

Manufacturer: View the TradeReady® Floor Joist Blocking page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
