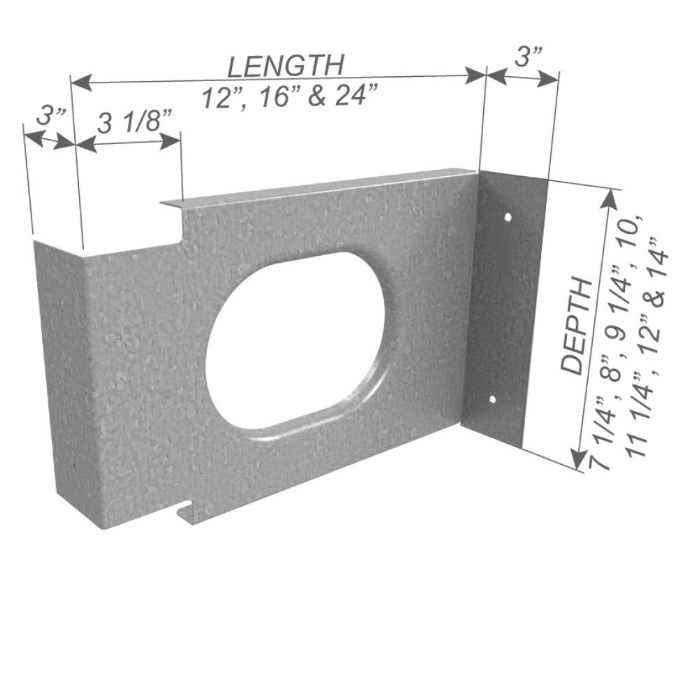

ClarkDietrich 925JB24 TradeReady Floor Joist Blocking - 9-1/4 in. joist, 24 in. o.c., 16 ga

925JB24 is a component of the TradeReady® floor bracing system: 9-1/4" deep blocking, pre-cut for 24" joist spacing, formed from 54mil (16ga) steel. Its extruded hole accommodates mechanical runs while the section holds the joists square against rotation.

Product Information

• Thickness: 54 mil (16 gauge), 0.0566 in. design thickness
• Joist depth: 9-1/4"
• Joist spacing: 24" on center
• Extruded hole: 6-1/2" x 9"
• Yield strength: 50 ksi
• Coating: G90 (Z275) hot-dipped galvanized
• Pre-punched connection legs for attachment to each joist
• Complies with the International Residential Code (Section R505.3) for solid blocking in steel floor joist systems
• Common applications: floor joist blocking, joist rotation control, mechanical pass-through in floor framing

Packaging: Sold individually or by the box of 10.

Manufacturer: View the TradeReady® Floor Joist Blocking page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
