ClarkDietrich A976 EasyClip A-Series End Clip - 3 x 3 x 6 in., 12 ga

The A976 EasyClip™ A-Series™ end clip is 6" of 97mil (12ga) steel with matched 3" legs. The A-Series is the unpunched member of the EasyClip rigid clip family, used for kneewall reinforcement and jamb stud attachment in cold-formed steel framing.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

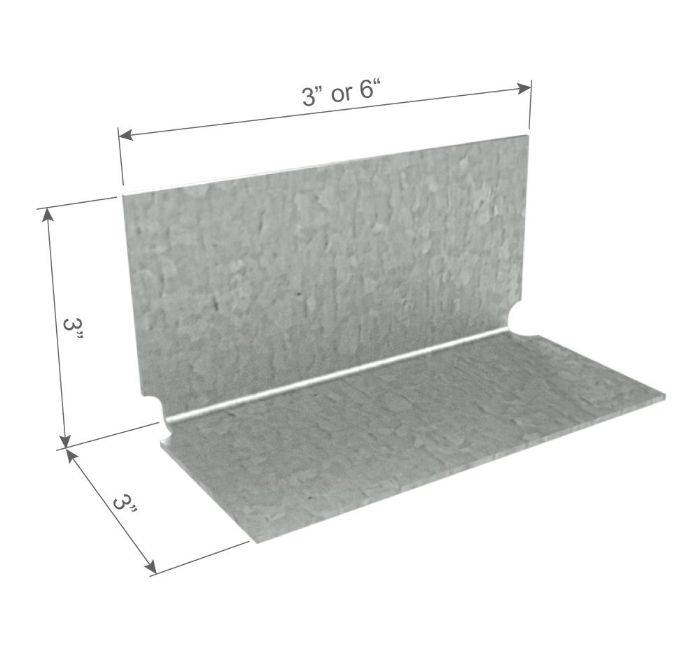

• Size: 3" x 3" x 6" (leg x leg x length)
• Legs: 3" and 3", unpunched so fastener count and placement can follow the connection
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: kneewall reinforcement, jamb stud connections to the primary frame

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the EasyClip™ A-Series™ End Clip page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
