ClarkDietrich CD15-B Bolted Holdown - 7 ga
$59.80
Sale price
$59.80
Regular price

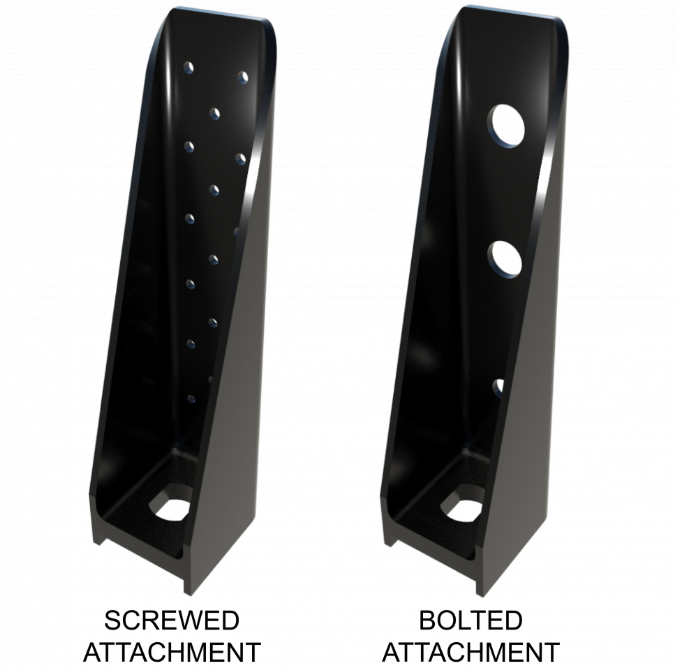

The CD15-B holdown secures shear walls to the structure foundation, carrying tension between floors or from a structural member down to concrete. Two-piece welded construction in 7 gauge steel, with a 7/8" x 1-1/8" anchor hole for the foundation bolt.
Product Information
- Thickness: 179 mil (7 gauge), 0.188 in. design thickness
- Bearing plate: 1/2"
- Anchor hole size: 7/8" x 1-1/8"
- Bolted version
- Two-piece welded construction
- Meets or exceeds ASTM A36 and A1011
- Framing attachment: fill all pre-punched holes with #14 screws
- Common applications: shear wall holdown, tension transfer between floors, structural member to foundation anchorage
Packaging: Sold individually.
Manufacturer: View the CD Holdown page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
