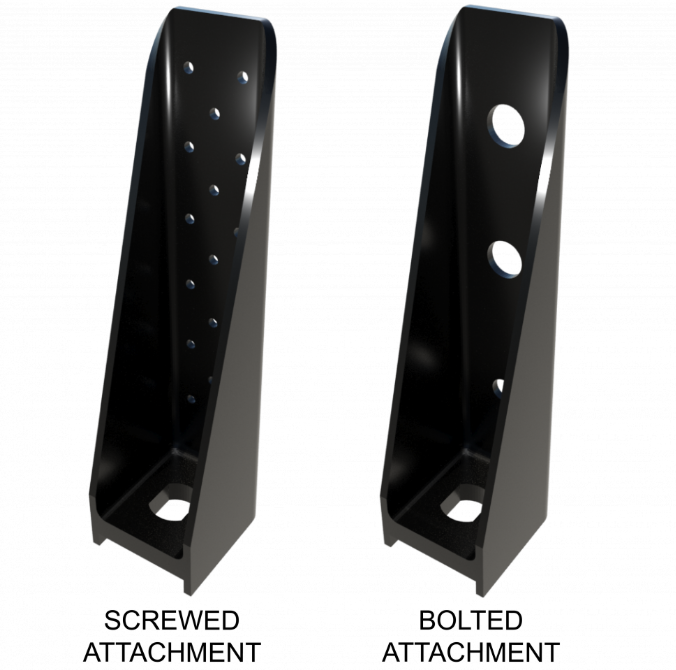

ClarkDietrich CD15 Holdown - 7 ga

CD15 is a two-piece welded holdown that transfers tension load from a shear wall to the foundation or between floors. Formed from 7 gauge (179mil) steel with a 1/2" bearing plate, it is pre-punched so the framing side goes on with #14 screws.

Product Information

• Thickness: 179 mil (7 gauge), 0.188 in. design thickness
• Bearing plate: 1/2"
• Anchor hole size: 7/8" x 1-1/8"
• Two-piece welded construction
• Meets or exceeds ASTM A36 and A1011
• Framing attachment: fill all pre-punched holes with #14 screws
• Common applications: shear wall holdown, tension transfer between floors, structural member to foundation anchorage

Packaging: Sold individually.

Manufacturer: View the CD Holdown page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
