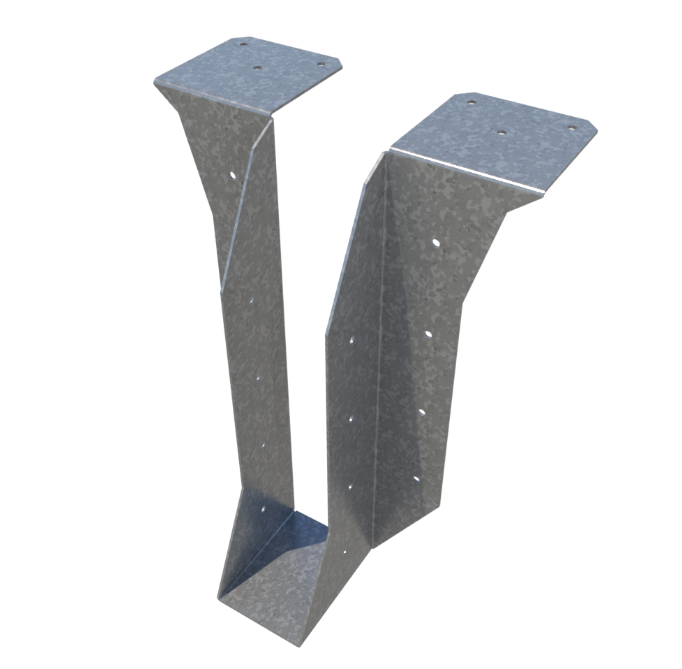

ClarkDietrich CDBV Bridle Hanger - 1-5/8 x 12 in., 14 ga

The CDBV 1-5/8x12 bridle hanger measures 1-5/8" wide by 12" deep in 68mil (14ga) steel. It makes the floor joist-to-beam connection in cold-formed steel framing, and can be attached with screws, powder-actuated fasteners, drill-in concrete anchors, or weld.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Width (W): 1-5/8"
• Depth (H): 12"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, C-joist to steel beam and wood ledger connections

Packaging: Sold individually or by the box of 15.

Manufacturer: View the Bridle Hanger (CDBV, CDMB) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
