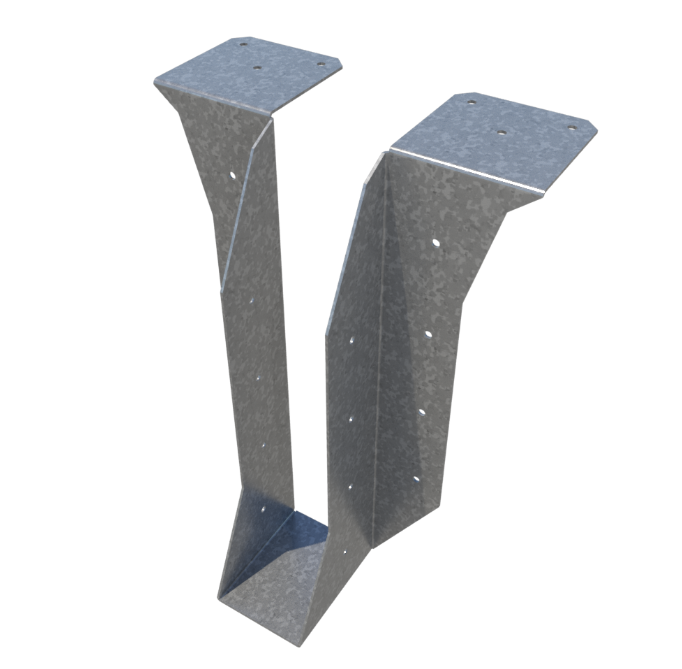

ClarkDietrich CDBV Bridle Hanger - 2 x 8 in., 14 ga

The CDBV 2x8 bridle hanger measures 2" wide by 8" deep in 68mil (14ga) steel. It makes the floor joist-to-beam connection in cold-formed steel framing, and can be attached with screws, powder-actuated fasteners, drill-in concrete anchors, or weld.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Width (W): 2"
• Depth (H): 8"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, C-joist to steel beam and wood ledger connections

Packaging: Sold individually or by the box of 20.

Manufacturer: View the Bridle Hanger (CDBV, CDMB) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
