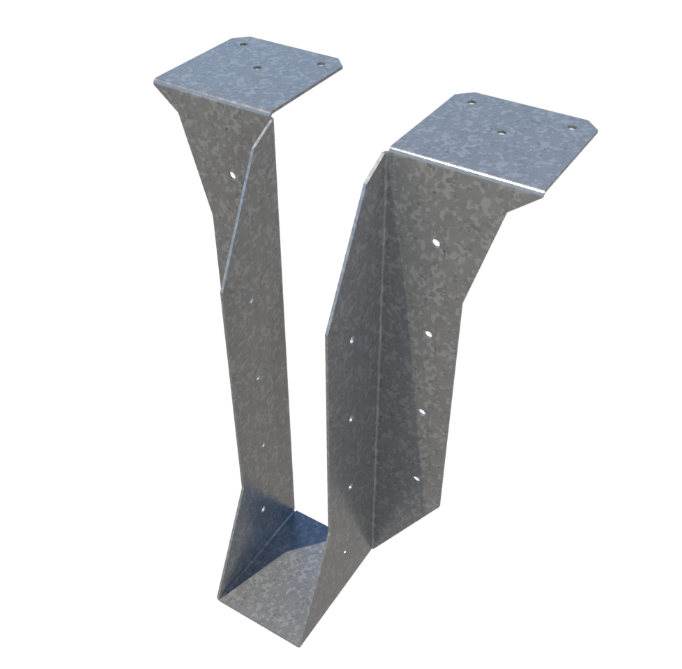

ClarkDietrich CDBV Bridle Hanger - 4 x 8 in., 14 ga

CDBV 4x8 is a 68mil (14ga) bridle hanger sized for a 4" joist at 8" depth. Bridle hangers are the standard floor joist hanger where a C-joist has to be carried by a steel beam or a wood ledger rather than framed into a rim track.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Width (W): 4"
• Depth (H): 8"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, C-joist to steel beam and wood ledger connections

Packaging: Sold individually or by the box of 15.

Manufacturer: View the Bridle Hanger (CDBV, CDMB) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
