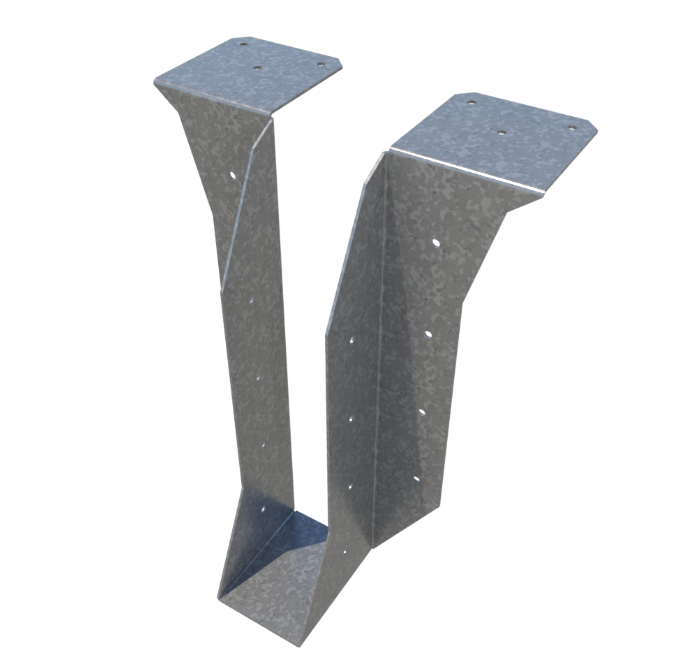

ClarkDietrich CDMB Bridle Hanger - 2 x 10 in., 12 ga

The CDMB 2x10 bridle hanger measures 2" wide by 10" deep in 97mil (12ga) steel. It makes the floor joist-to-beam connection in cold-formed steel framing, and can be attached with screws, powder-actuated fasteners, drill-in concrete anchors, or weld.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness
• Width (W): 2"
• Depth (H): 10"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, C-joist to steel beam and wood ledger connections

Packaging: Sold individually or by the box of 15.

Manufacturer: View the Bridle Hanger (CDBV, CDMB) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
