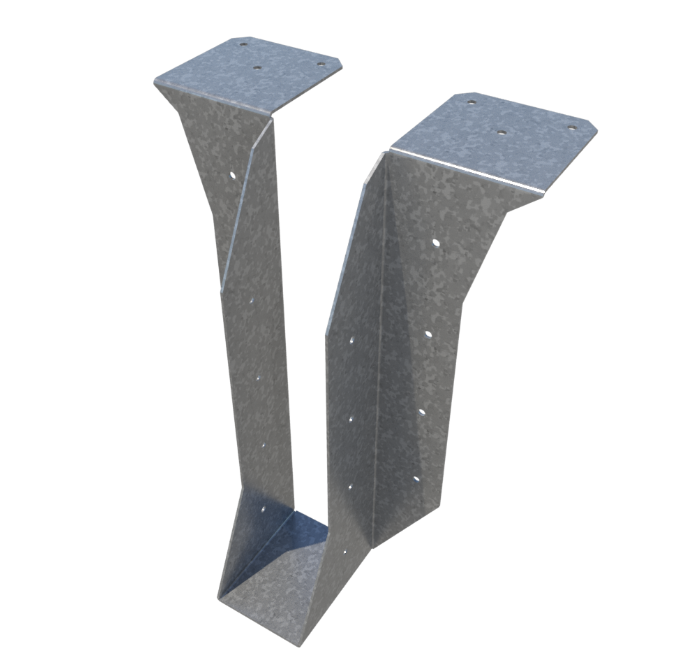

ClarkDietrich CDMB Bridle Hanger - 4 x 12 in., 12 ga

CDMB 4x12 is a 12 gauge bridle hanger with a 4" seat and a 12" depth, used to hang light-gauge C-joists off structural steel beams or wood ledgers. The hanger is set on the primary frame first, then the joist drops in and is fastened through the side legs.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness
• Width (W): 4"
• Depth (H): 12"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, C-joist to steel beam and wood ledger connections

Packaging: Sold individually or by the box of 15.

Manufacturer: View the Bridle Hanger (CDBV, CDMB) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
