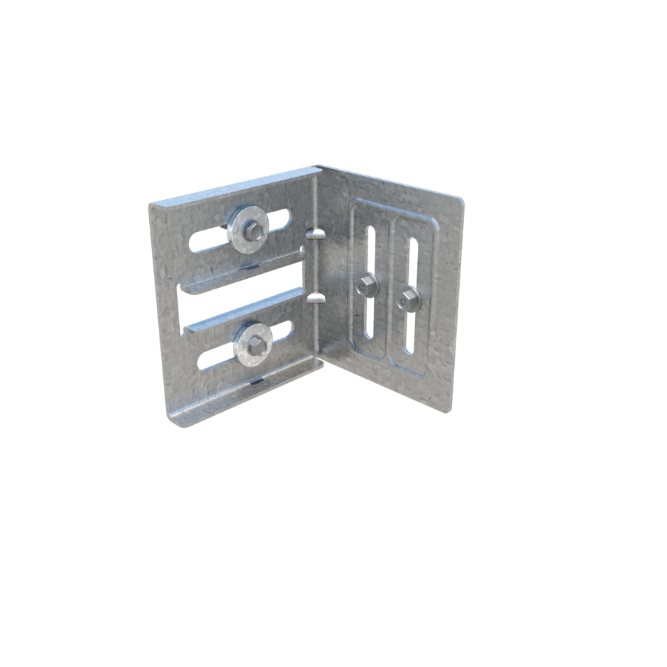

ClarkDietrich D-FCSC3.5 DRIFT FASTCLIP™ SLIDE CLIP 3.5IN 12G

VERTICAL AND LATERAL BUILDING MOVEMENT UP TO 2".

ClarkDietrich Drift FastClip™ Slide Clip 97mils (12ga) is used to attach exterior curtain-wall studs to the building structure and provide for both vertical and lateral movement. FastClip Deflection Screws are provided with each clip for attachment to the wall studs and allow for 2" vertical deflection (1" up and down) to ensure friction-free sliding. Step bushing are provided for the connection to the structure and allow for 2" lateral deflection (1" left and right). U.S. Patent No. D814905

Product Dimensions

D-FCSC3.5: 3-3/4" x 4" x 3-1/2" long

Material Specifications

Gauge: 12 gauge (97mil)Design Thickness: 0.1017 inchesYield Strength: 50ksiCoating: G90ASTM: A653/A1003

Packaging

25 Clips per BucketD-FCSC3.5 includes (55) FastClip Deflection Screws & (50) Bushings INSTALLATION To attach the clip to the cold-formed steel framing, two, three or four FastClip deflection screws (based upon clip size), shall be driven through the slotted holes and positioned to allow for the appropriate building deflection. Attachment to the primary structure can be made with screws, or bolt anchors. Structure attachments shall be driven through the drift bushings and the Drift FastClip™ - centered in the drift slots.
