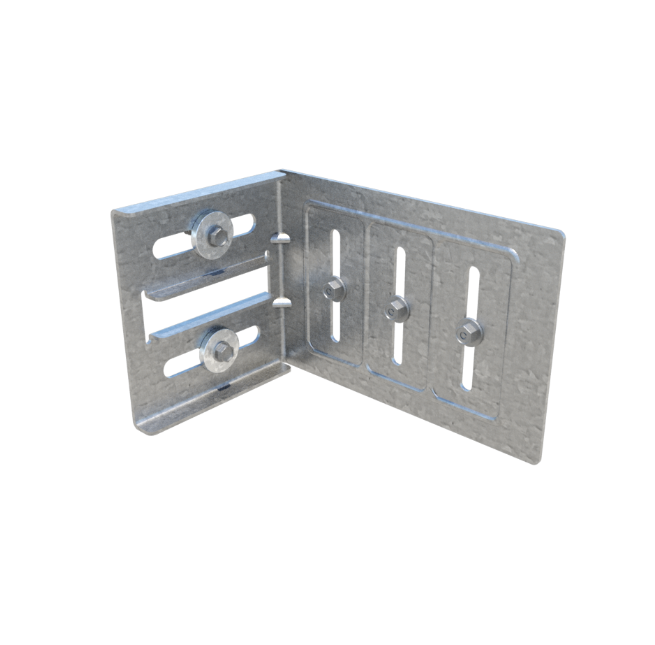

ClarkDietrich D-FCSC6 Drift FastClip Slide Clip - 6 in., 12 ga

D-FCSC6 (12ga) is a 6" Drift FastClip™ slide clip in 97mil (12ga) steel, built for connections that have to take both vertical and lateral movement. Deflection screws give 2" of vertical travel at the stud, and step bushings give 2" of lateral drift at the structure.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness
• Clip size: 6"
• Vertical movement: 2" (1" up, 1" down)
• Lateral drift: 2" (1" left, 1" right) through step bushings
• Proprietary deflection screws and bushings included
• U.S. Patent No. D814905
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653 and A1003
• Common applications: seismic drift connections, curtain wall framing, combined vertical and lateral movement at the structure

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the Drift FastClip™ Slide Clip (D-FCSC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
