ClarkDietrich D685 EasyClip D-Series Anchor Clip - 2 x 2 x 5-1/2 in., 14 ga

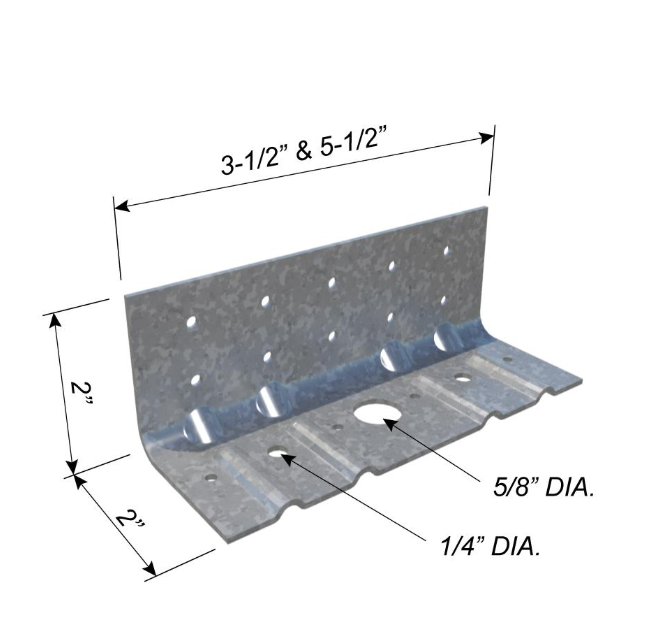

The D685 EasyClip™ D-Series™ anchor clip measures 2" x 2" x 5-1/2" in 68mil (14ga) steel. Stiffening ribs raise its design values, and the clip is pre-punched with anchor bolt, Kwik-Con, and screw holes for foundation anchor and truss-to-wall work in cold-formed steel framing.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Size: 2" x 2" x 5-1/2" (leg x leg x length)
• Legs: 2" and 2", pre-punched for screw attachment
• Stiffening ribs; pre-punched with anchor bolt, Kwik-Con, and screw holes
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: kneewall-to-foundation tie-down, light shear wall anchorage, truss-to-wall connections

Packaging: Sold individually or by the bucket of 40.

Manufacturer: View the EasyClip™ D & T-Series™ Anchor Clips page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
