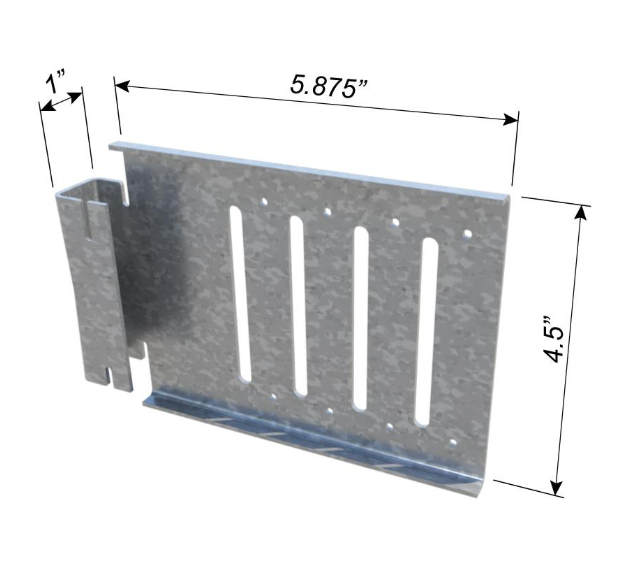

ClarkDietrich DRC6 Drift Rail Clip - 6 in., 14 ga

The DRC6 (14ga) Drift Rail clip pairs with the DR97 C-shaped rail to attach curtain wall studs to the structure with lateral and vertical movement, or rigidly through its 1/8" holes. 6" long in 68mil (14ga) steel.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Clip size: 6"
• Vertical deflection: 3" (1-1/2" up, 1-1/2" down)
• Also pre-punched with 1/8" holes for a rigid stud attachment
• Used with the ClarkDietrich Drift Rail (DR97)
• FastClip™ deflection screws for stud attachment
• Yield strength: 50 ksi
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653 and A1003
• Common applications: seismic drift and lateral movement at curtain wall framing, rigid or deflection stud connections

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the Drift Rail (DR97) and Clip (DRC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
