ClarkDietrich E681 EasyClip E-Series Rigid Stand-Off Clip - 4 x 1-1/2 x 11 in., 14 ga

E681 is the 14 gauge, 11" EasyClip™ E-Series™ rigid clip. Pre-punched across both the 4" and 1-1/2" legs, it secures rafter framing to the primary structure and handles bypass wall stand-off conditions in metal stud framing.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

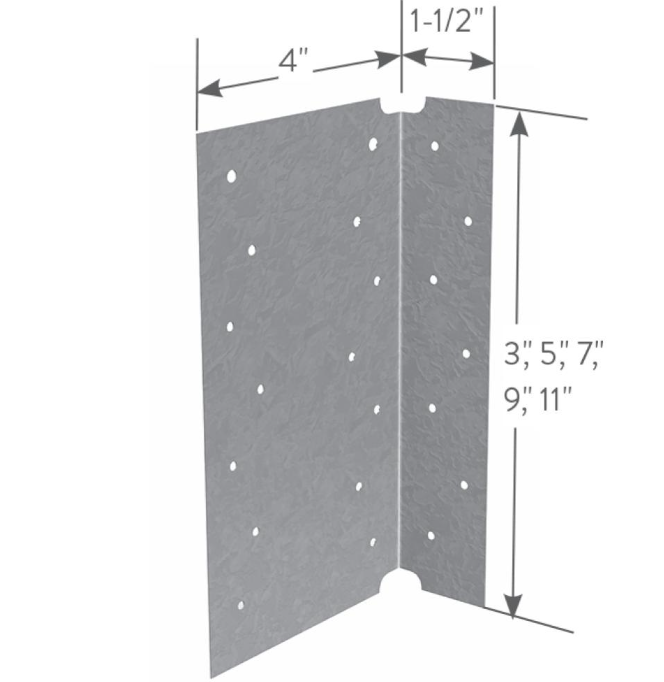

• Size: 4" x 1-1/2" x 11" (leg x leg x length)
• Legs: 4" and 1-1/2", pre-punched for screw attachment
• Stand-off: accommodates connections up to 2-7/8"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: bypass wall stand-off connections, solid and ladder blocking in floor framing, joist-to-joist connections, rafter framing to structure

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the EasyClip™ E-Series™ Support Clip page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
