ClarkDietrich E683 EasyClip E-Series Rigid Stand-Off Clip - 4 x 1-1/2 x 3 in., 14 ga

E683 is a 68mil (14ga) EasyClip™ E-Series™ rigid clip, 3" long, with a 4" leg and a 1-1/2" leg. The long leg is what sets the E-Series apart: it carries stand-off connections up to 2-7/8", making it a standard choice for bypass wall conditions in cold-formed steel framing.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

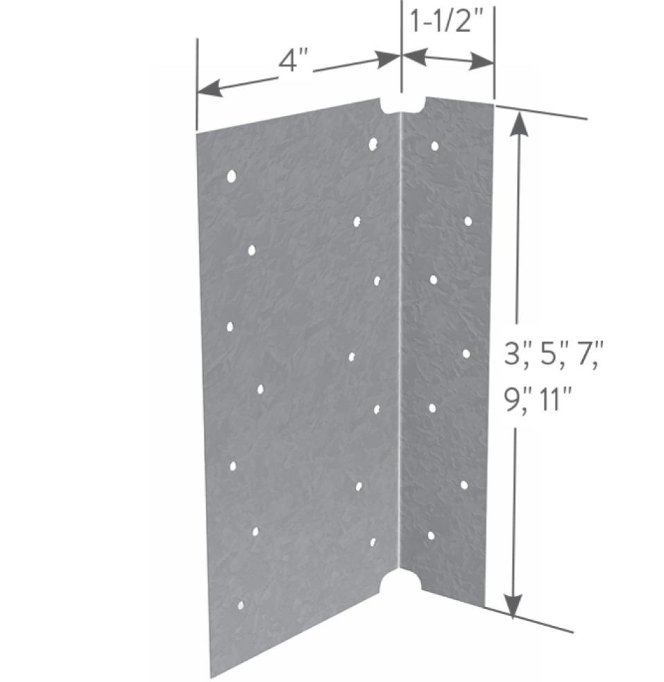

• Size: 4" x 1-1/2" x 3" (leg x leg x length)
• Legs: 4" and 1-1/2", pre-punched for screw attachment
• Stand-off: accommodates connections up to 2-7/8"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: bypass wall stand-off connections, solid and ladder blocking in floor framing, joist-to-joist connections, rafter framing to structure

Packaging: Sold individually or by the bucket of 100.

Manufacturer: View the EasyClip™ E-Series™ Support Clip page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
