ClarkDietrich E971 EasyClip E-Series Rigid Stand-Off Clip - 4 x 1-1/2 x 11 in., 12 ga

The E971 EasyClip™ E-Series™ rigid clip measures 4" x 1-1/2" x 11" in 97mil (12ga) steel. Its extended 4" leg holds the connection off the supporting member, and the clip is widely used for solid and ladder blocking in floor framing and for joist-to-joist work.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

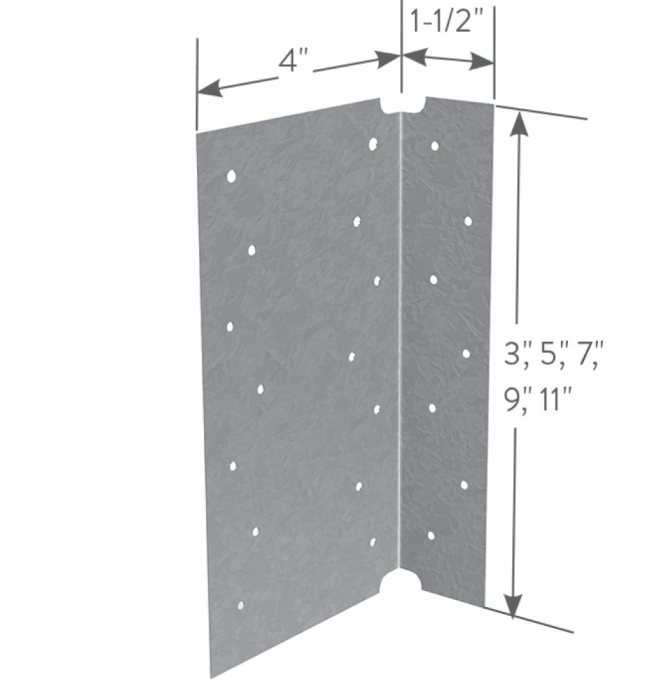

• Size: 4" x 1-1/2" x 11" (leg x leg x length)
• Legs: 4" and 1-1/2", pre-punched for screw attachment
• Stand-off: accommodates connections up to 2-7/8"
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Sheet steel meets or exceeds ASTM A1003; galvanized coating meets or exceeds ASTM A653
• Common applications: bypass wall stand-off connections, solid and ladder blocking in floor framing, joist-to-joist connections, rafter framing to structure

Packaging: Sold individually or by the bucket of 40.

Manufacturer: View the EasyClip™ E-Series™ Support Clip page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
