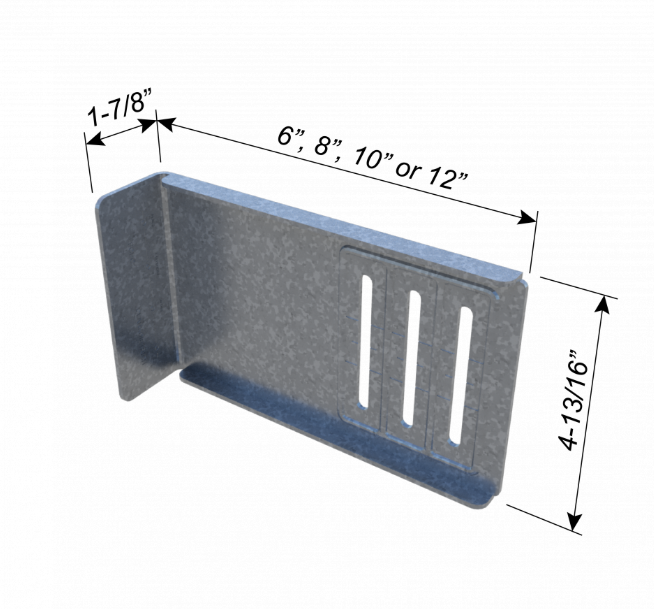

ClarkDietrich FCEC Extended FastClip Slide Clip - 10 in., 14 ga

FCEC is a 10" Extended FastClip™ slide clip in 68mil (14ga) steel, used to attach exterior curtain wall studs to the structure with up to 3" of vertical building movement. Its length suits medium to large standoff conditions where the stud line sits well off the slab edge.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Clip length: 10"
• Vertical movement: up to 3"
• FastClip™ deflection screws included
• Adjustable standoff for a plumb wall plane
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets Intertek CCRR-0208 for compliance with the International Building Code and International Residential Code
• Common applications: curtain wall framing, bypass connections at large standoff, vertical deflection at the structure

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the Extended FastClip™ (FCEC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
