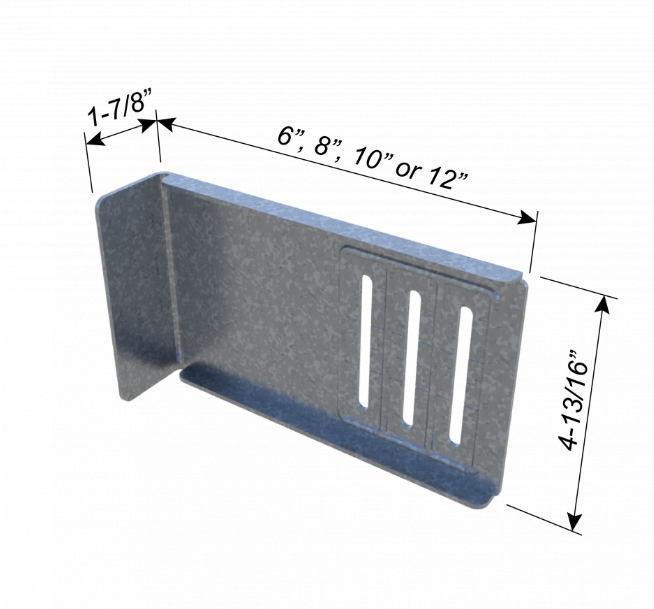

ClarkDietrich FCEC10-97 Extended FastClip Slide Clip - 10 in., 12 ga

The FCEC10-97 Extended FastClip™ deflection clip runs 10" long in 97mil (12ga) steel. It installs with screws, welds, or powder-actuated fasteners, and its adjustable standoff is what brings the curtain wall plane back to plumb without shims.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness
• Clip length: 10"
• Vertical movement: up to 3"
• FastClip™ deflection screws included
• Adjustable standoff for a plumb wall plane
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets Intertek CCRR-0208 for compliance with the International Building Code and International Residential Code
• Common applications: curtain wall framing, bypass connections at large standoff, vertical deflection at the structure

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the Extended FastClip™ (FCEC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
