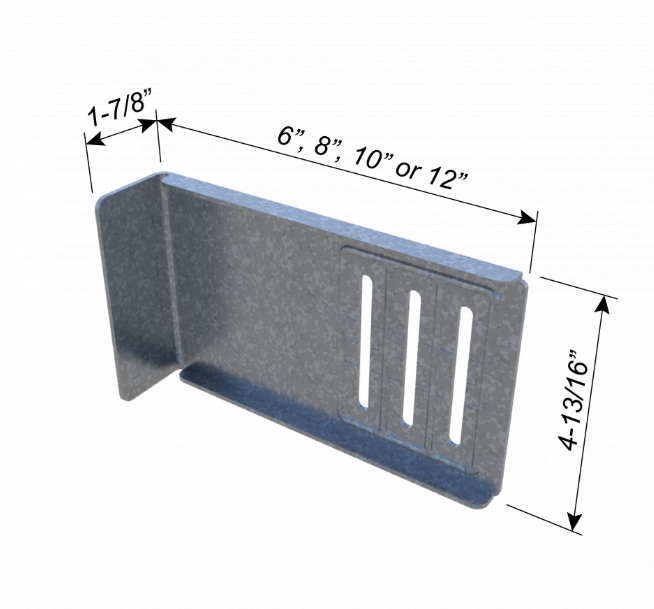

ClarkDietrich FCEC12-97 Extended FastClip Slide Clip - 12 in., 12 ga

FCEC12-97 is an Extended FastClip™ slide clip, 12" in 12 gauge. FastClip™ deflection screws ship with each clip to keep the slip connection friction-free, and the clip carries the bypass framing connection across a large standoff.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness
• Clip length: 12"
• Vertical movement: up to 3"
• FastClip™ deflection screws included
• Adjustable standoff for a plumb wall plane
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets Intertek CCRR-0208 for compliance with the International Building Code and International Residential Code
• Common applications: curtain wall framing, bypass connections at large standoff, vertical deflection at the structure

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the Extended FastClip™ (FCEC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
