ClarkDietrich FCSC-HD FastClip Slide Clip, 5/8 in. Anchor Holes - 5/8IN in., 14 ga

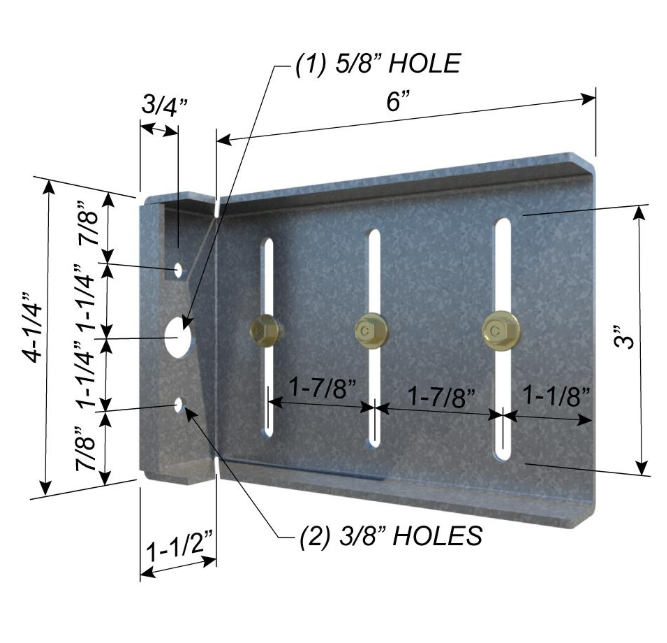

FCSC-HD is a FastClip™ slide clip in 68mil (14ga) steel with 5/8" anchor holes, made for attaching exterior curtain wall studs directly to a concrete structure. Proprietary deflection screws take the stud side, and 1/2" bolt anchors take the slab side.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Includes 5/8" anchor holes for concrete attachment
• Attachment to concrete via 1/2" bolt anchors
• Proprietary deflection screws included (80 per bucket)
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing anchored to concrete slab, bypass deflection connections

Packaging: Sold individually or by the bucket of 25.

Manufacturer: View the FastClip™ Slide Clip (FCSC-HD) w/Anchor Holes page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
