ClarkDietrich FCSC5.5-68 FastClip Slide Clip - 5-1/2 in., 14 ga

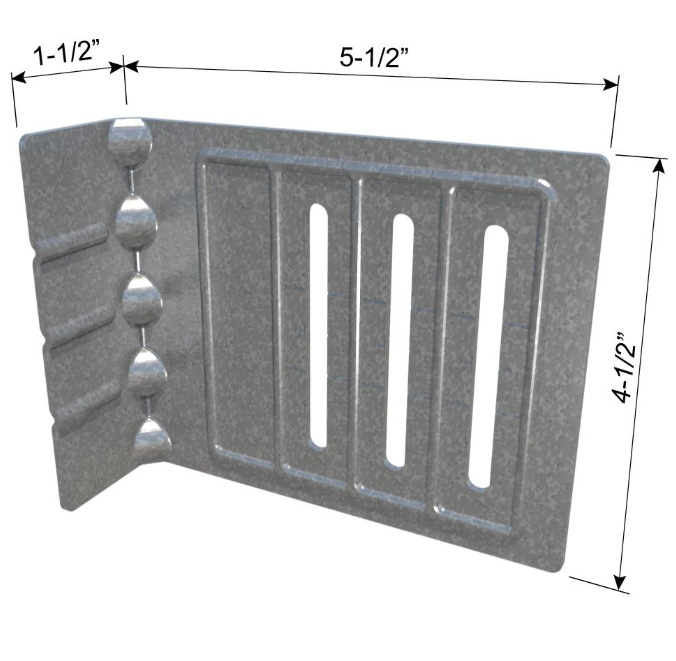

FCSC5.5-68 is a FastClip™ slide clip, 5-1/2" in 68mil (14ga) steel, attaching exterior curtain wall studs to the structure with up to 3" of vertical building movement. The 5-1/2" clip permits up to 2" of standoff from the primary frame.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Clip size: 5-1/2"
• Vertical movement: up to 3" (1-1/2" up, 1-1/2" down)
• Standoff: up to 2" from the primary frame
• FastClip™ deflection screws included
• Embossed fastening patterns
• U.S. Patent No. 6,688,069
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets Intertek CCRR-0208 for compliance with the International Building Code
• Common applications: curtain wall framing, bypass slab-edge connections, vertical deflection at the structure

Packaging: Sold individually or by the box of 25.

Manufacturer: View the FastClip™ Slide Clips (FCSC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
