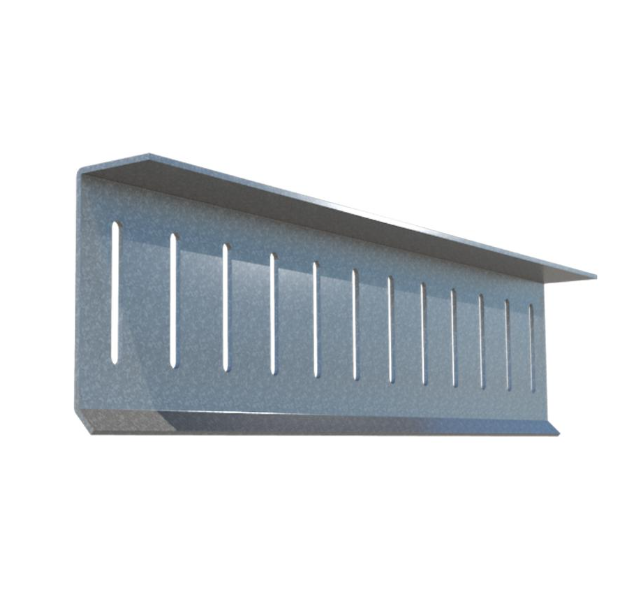

ClarkDietrich FS15 Fast Strut Curtain Wall Connector - 4 x 1-1/2 in., 14 ga

The FS15 Fast Strut™ runs " long and uses FastClip™ technology for the curtain wall stud attachment. It allows 2-1/2" of vertical movement and is embossed with fastening patterns so screws land where the load table assumes they will.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Size: 4" x 1-1/2" x "
• Vertical movement: up to 2-1/2" (1-1/4" up, 1-1/4" down)
• FastClip™ deflection screws included
• Embossed fastening patterns
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing at large standoff, spandrel beams set back from the slab edge

Packaging: Sold individually or by the box of 10.

Manufacturer: View the Fast Strut™ (FS12, FS15, FS18, FS20, FS22, FS24) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
