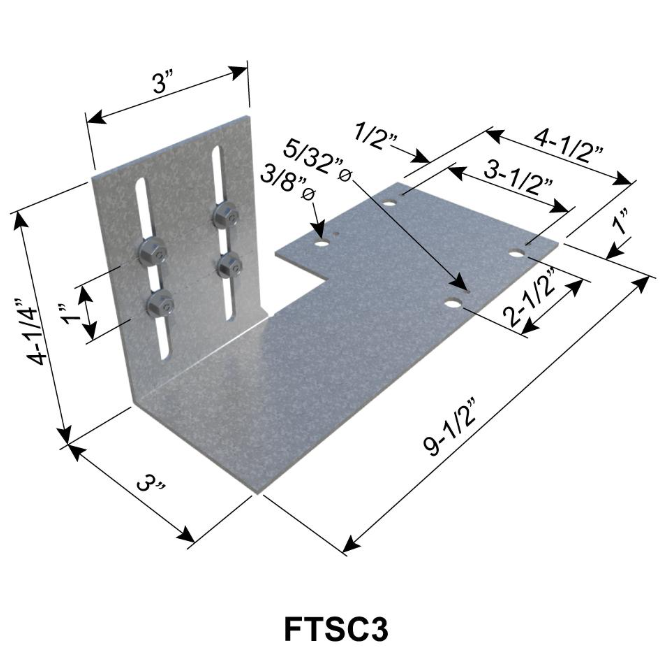

ClarkDietrich FTSC3-118 Flat Tail Slide Clip - 3 x 9-1/2 in., 10 ga (Left)

FTSC3-118 (Left) is a left-handed Flat Tail™ slide clip in 118mil (10ga) steel, 3" tall, used to attach exterior curtain wall studs to the structure while allowing 2-1/4" of vertical building movement. The flat tail gives variable standoff without shims or added framing.

Product Information

• Thickness: 118 mil (10 gauge), 0.1242 in. design thickness
• Size: 3" x 9-1/2"
• Hand: left-handed
• Vertical movement: up to 2-1/4" (1-1/8" up, 1-1/8" down)
• FastClip™ deflection screws included
• Variable standoff; no shims or added framing required
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing, bypass slab-edge connections, vertical deflection at the structure

Packaging: Sold individually.

Manufacturer: View the Flat Tail™ Slide Clip (FTSC) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
