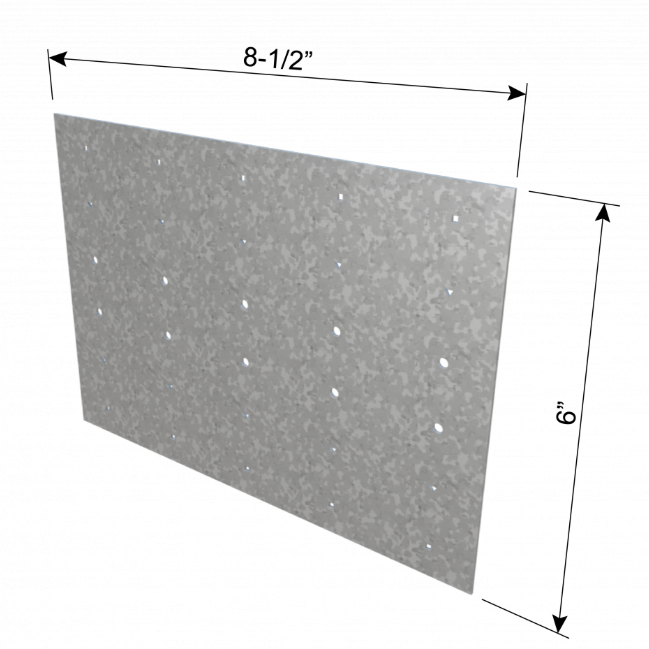

ClarkDietrich G436 G-Series Punched Gusset Plate - 18 ga

G436 is a G-Series™ punched gusset plate in 43mil (18ga) steel. Gusset plates are multipurpose connectors for roof framing, header framing, and shear wall connections, and the multi-hole pattern lets one plate adapt to varying construction tolerances instead of being cut to angle.

Product Information

• Thickness: 43 mil (18 gauge), 0.0451 in. design thickness
• Multi-hole punched pattern
• Mill-certified SS Grade 33 ksi
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Eliminates angled cutting
• Common applications: roof framing connections, header framing, shear wall applications

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the Gusset Plates (G-Series & GP-Series) page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
