ClarkDietrich HDSC Header Bracket - 3-1/2" long x 3-9/16" tall x 2" legs in., 20 ga

HDSC 3-1/2" header bracket, 3-1/2" flange, in 20 gauge for the 3-5/8" stud system — 3-1/2" long with a 3-9/16" face. Header brackets turn curtain wall header installation into a one-person operation in cold-formed steel framing, with every hole pre-punched.

Product Information

• Thickness: 33 mil (20 gauge), 33 ksi minimum yield

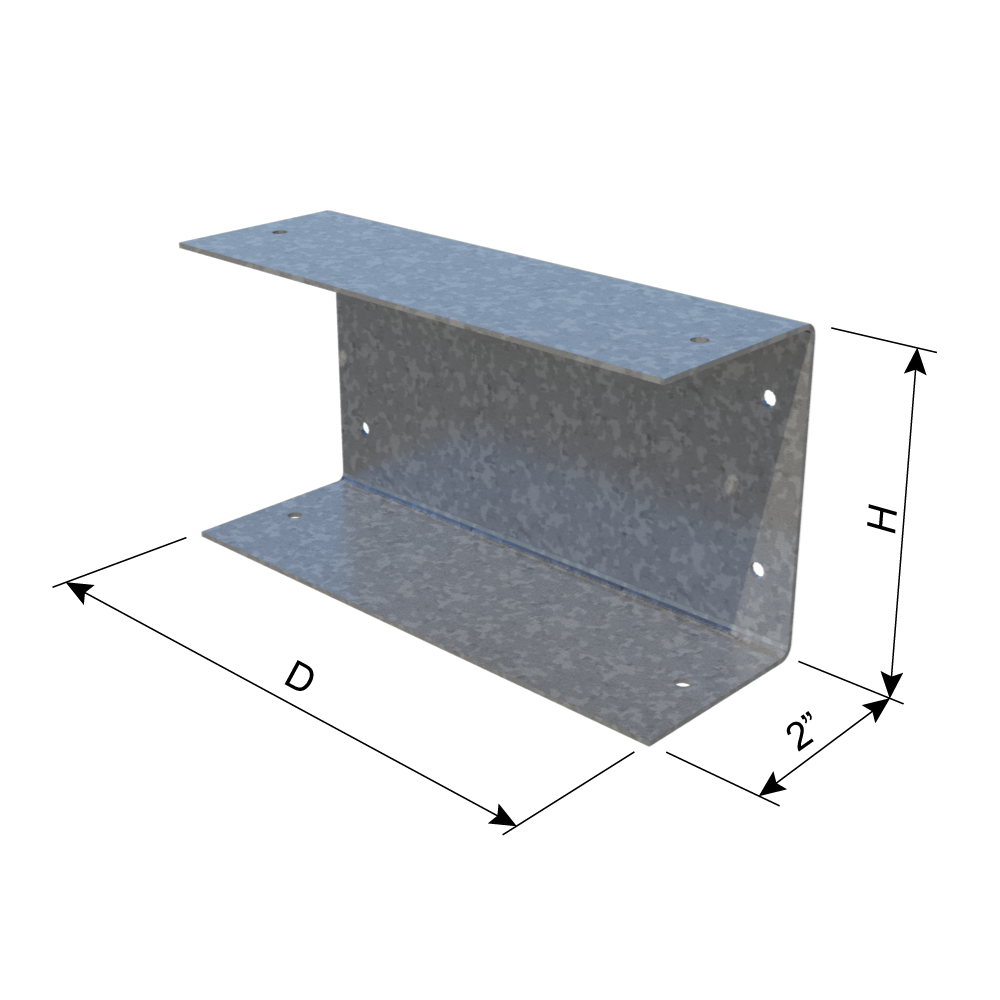

• Dimensions: 3-1/2" long x 3-9/16" tall x 2" legs
• Stud system: 3-5/8"
• Header flange: 3-1/2"
• Coating: G90 (Z275) hot-dipped galvanized
• Pre-punched for screw attachment
• Common applications: curtain wall header installation, head-of-opening connections in metal stud framing

Packaging: Sold individually.

Manufacturer: View the HDSC Header Bracket page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
