ClarkDietrich HDSC Header Bracket - 3-7/8" long x 3-1/16" tall x 2" legs in., 20 ga

The HDSC 3-7/8" header bracket with a 3" flange is formed from 33mil (20ga) steel for 4" framing: 3-7/8" long, 3-1/16" tall, 2" legs. The bracket complements the HDS® framing system and keeps fastener heads off the finish face of the header.

Product Information

• Thickness: 33 mil (20 gauge), 33 ksi minimum yield

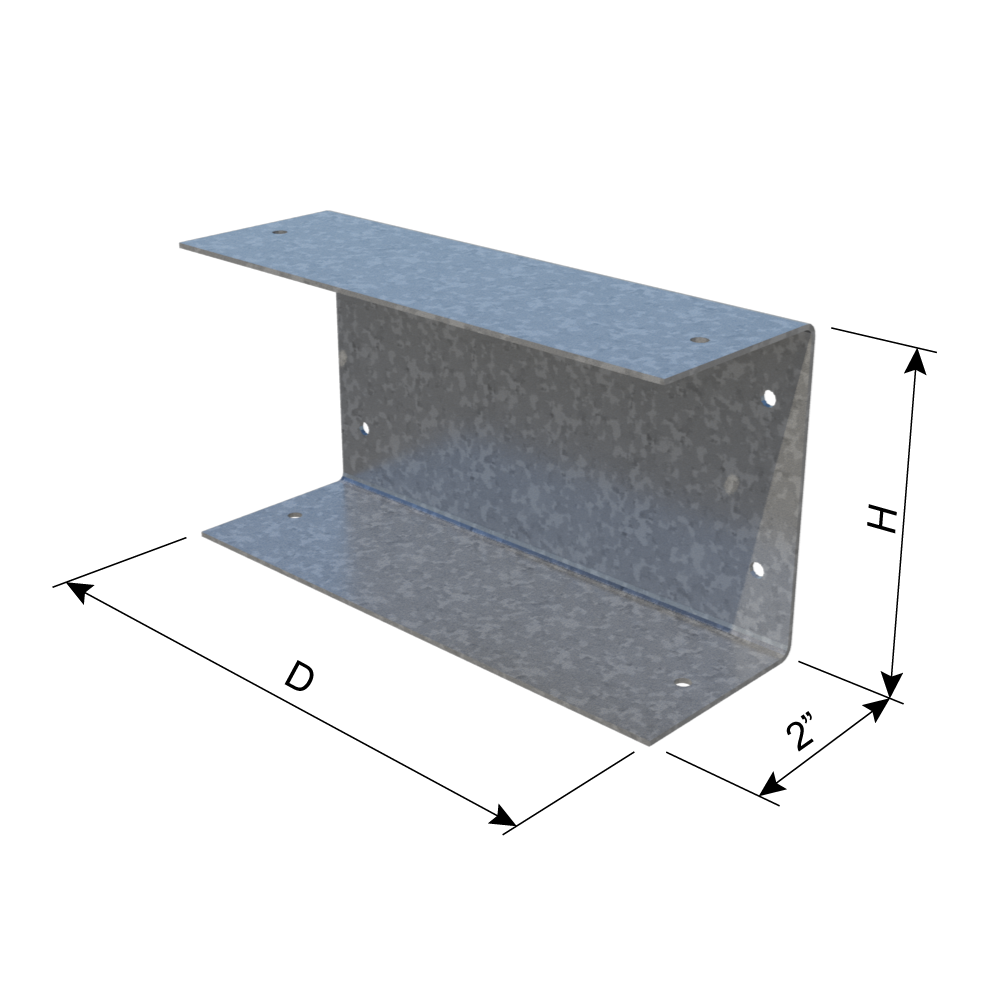

• Dimensions: 3-7/8" long x 3-1/16" tall x 2" legs
• Stud system: 4"
• Header flange: 3"
• Coating: G90 (Z275) hot-dipped galvanized
• Pre-punched for screw attachment
• Common applications: curtain wall header installation, head-of-opening connections in metal stud framing

Packaging: Sold individually.

Manufacturer: View the HDSC Header Bracket page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
