ClarkDietrich HDSC Header Bracket - 5-7/8" long x 3-9/16" tall x 2" legs in., 12 ga

HDSC 5-7/8" header bracket, 3-1/2" flange, 97mil (12ga) — sized for the 6" system and measuring 5-7/8" long by 3-9/16" tall with 2" legs. It carries the curtain wall header at the jamb, and its pre-punched form lets one person set a header that would otherwise take two.

Product Information

• Thickness: 97 mil (12 gauge), 50 ksi minimum yield

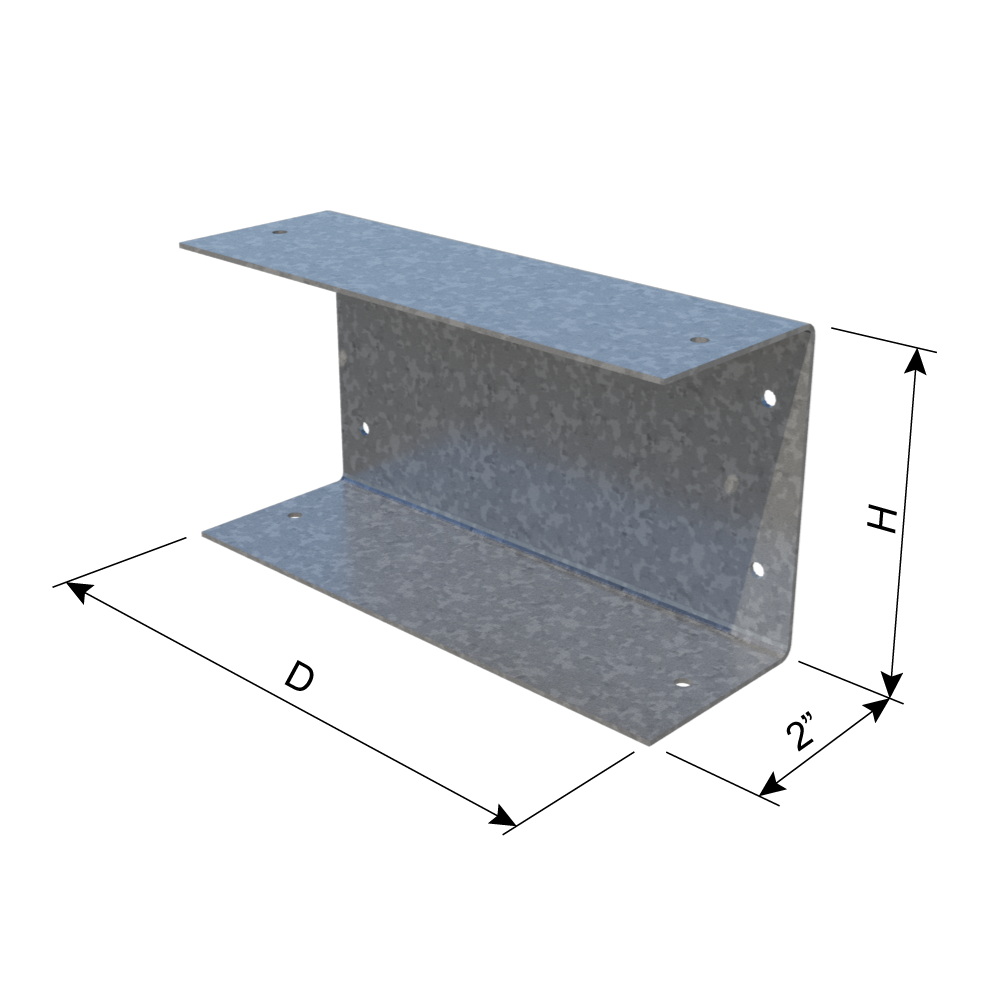

• Dimensions: 5-7/8" long x 3-9/16" tall x 2" legs
• Stud system: 6"
• Header flange: 3-1/2"
• Coating: G90 (Z275) hot-dipped galvanized
• Pre-punched for screw attachment
• Common applications: curtain wall header installation, head-of-opening connections in metal stud framing

Packaging: Sold individually.

Manufacturer: View the HDSC Header Bracket page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
