ClarkDietrich HDSC Header Bracket - 7-7/8" long x 3-1/16" tall x 2" legs in., 14 ga
Each
$13.47
Sale price
$13.47
Regular price
Skip to product information
ClarkDietrich HDSC Header Bracket - 7-7/8" long x 3-1/16" tall x 2" legs in., 14 ga
$13.47
Sale price
$13.47
Regular price
HDSC 7-7/8" header bracket, 3" flange, in 14 gauge for the 8" stud system — 7-7/8" long with a 3-1/16" face. Header brackets turn curtain wall header installation into a one-person operation in cold-formed steel framing, with every hole pre-punched.
Product Information
- Thickness: 68 mil (14 gauge), 50 ksi minimum yield

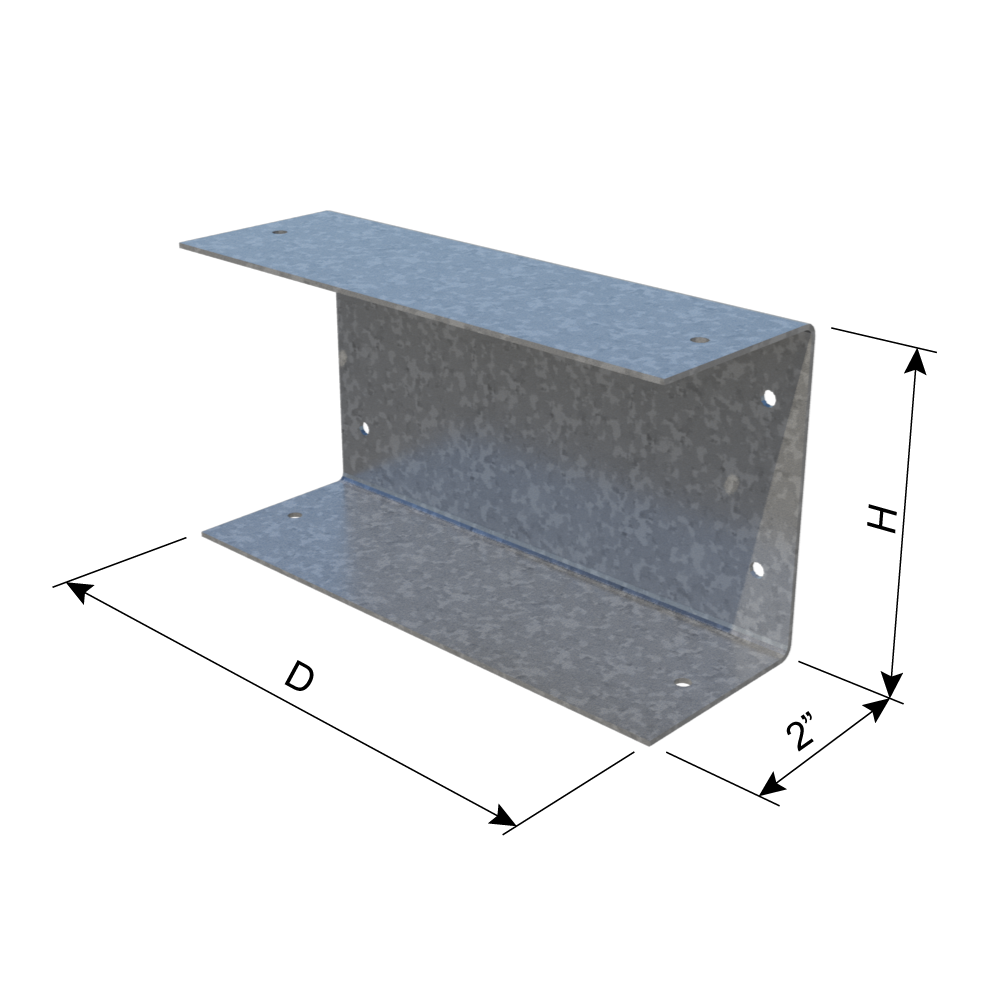

- Dimensions: 7-7/8" long x 3-1/16" tall x 2" legs
- Stud system: 8"
- Header flange: 3"
- Coating: G90 (Z275) hot-dipped galvanized
- Pre-punched for screw attachment
- Common applications: curtain wall header installation, head-of-opening connections in metal stud framing
Packaging: Sold individually.
Manufacturer: View the HDSC Header Bracket page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
