ClarkDietrich LA685 SwiftClip LA-Series Rigid Clip - 3 x 3 x 5-1/2 in., 14 ga

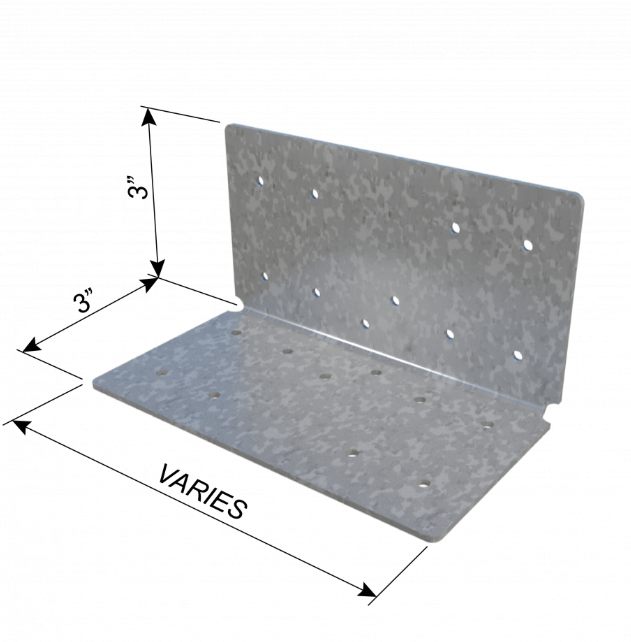

The LA685 SwiftClip™ LA-Series rigid clip measures 3" x 3" x 5-1/2" in 68mil (14ga) steel. Both legs are pre-punched, and the square leg profile spreads the connection over a wider footprint than an LS or LE clip of the same length.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Size: 3" x 3" x 5-1/2" (leg x leg x length)
• Legs: 3" and 3", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, truss connections

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the SwiftClip™ 300 x 300 LA-Series Support Clip page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
