ClarkDietrich LA973 SwiftClip LA-Series Rigid Clip - 3 x 3 x 3-1/4 in., 12 ga

LA973 is a 97mil (12ga) SwiftClip™ LA-Series rigid clip with 3" x 3" legs, 3-1/4" long. The wide double leg gives the largest bearing surface in the SwiftClip line, which is why the LA-Series is the usual pick for floor joist hangers and truss connections in cold-formed steel framing.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

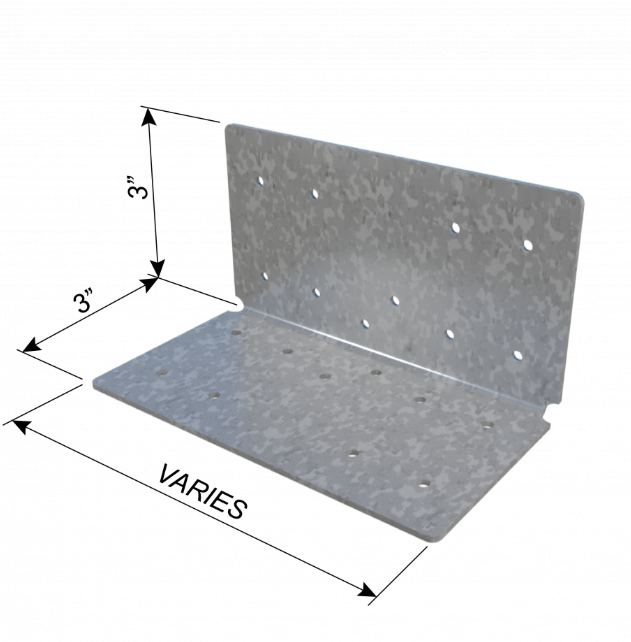

• Size: 3" x 3" x 3-1/4" (leg x leg x length)
• Legs: 3" and 3", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, truss connections

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the SwiftClip™ 300 x 300 LA-Series Support Clip page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
