ClarkDietrich LE547 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 7-1/4 in., 16 ga

At 7-1/4" long, LE547 is the deepest 54mil (16ga) clip in the SwiftClip™ LE-Series rigid clip line, with 1-1/2" and 3" legs pre-punched across the full height. The extra length suits deeper joist and truss connections in cold-formed steel framing where more fasteners are needed to develop the load.

Product Information

• Thickness: 54 mil (16 gauge), 0.0566 in. design thickness

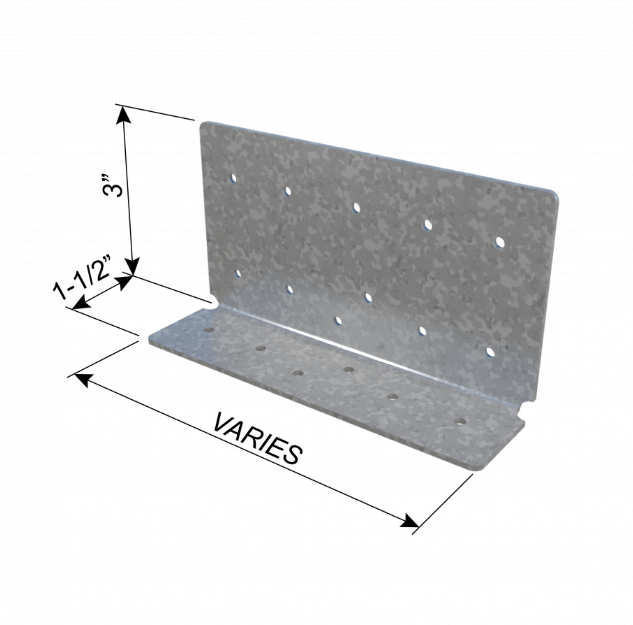

• Size: 1-1/2" x 3" x 7-1/4" (leg x leg x length)
• Legs: 1-1/2" and 3", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, truss connections, deeper openings

Packaging: Sold individually or by the bucket of 100.

Manufacturer: View the SwiftClip™ 150 x 300 LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
