ClarkDietrich LE6816 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 16 in., 14 ga

LE6816 is a 16" Extended SwiftClip™ LE-Series rigid clip in 68mil (14ga) steel, used to attach exterior curtain wall studs back to the building structure. Its length carries the connection across a medium standoff, and the unpunched legs let the fastener pattern follow whatever the curtain wall framing condition requires.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

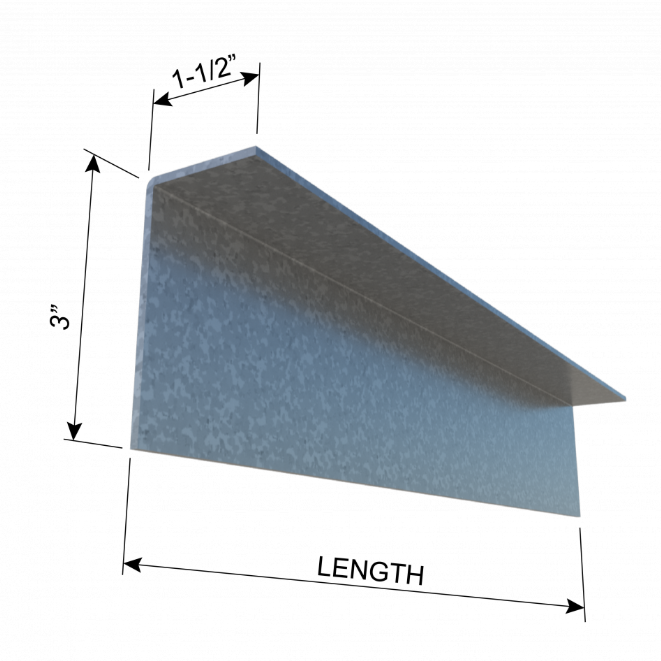

• Size: 1-1/2" x 3" x 16" (leg x leg x length)
• Unpunched, so fastener count and placement can be set by the connection condition
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing, bypass slab-edge standoff connections

Packaging: Sold individually or by the box of 10.

Manufacturer: View the Extended SwiftClip™ LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
