ClarkDietrich LE6820 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 20 in., 14 ga

LE6820 is a 20" Extended SwiftClip™ LE-Series rigid clip and the longest in the range still built on the full 1-1/2" x 3" leg profile. It ties exterior studs to the structure across a large standoff in cold-formed steel curtain wall framing, resisting both horizontal and vertical load.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

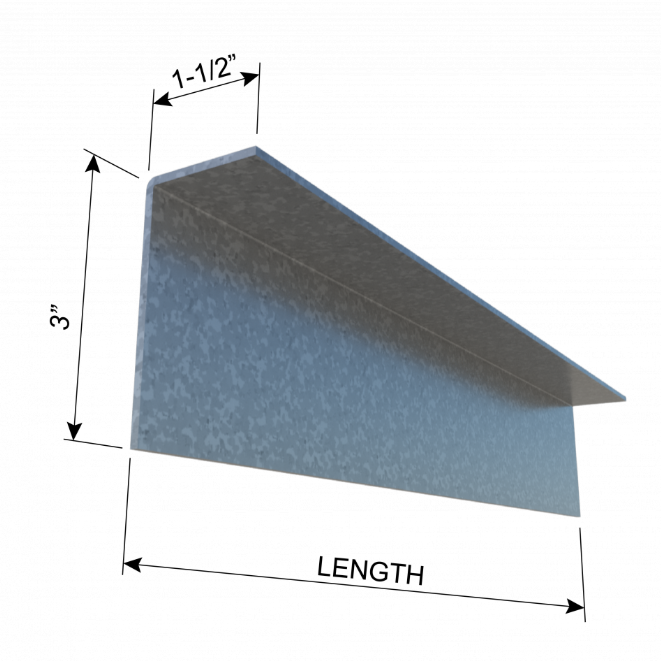

• Size: 1-1/2" x 3" x 20" (leg x leg x length)
• Unpunched, so fastener count and placement can be set by the connection condition
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing, bypass slab-edge standoff connections

Packaging: Sold individually or by the box of 10.

Manufacturer: View the Extended SwiftClip™ LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
