ClarkDietrich LE6824 SwiftClip LE-Series Rigid Clip - 1-1/2 x 2-5/8 x 24 in., 14 ga

At 24", LE6824 crosses into the long end of the Extended SwiftClip™ LE-Series rigid clip range, where the leg profile changes to 1-1/2" x 2-5/8" with a 1/2" stiffening return. The 68mil (14ga) clip carries curtain wall stud connections back to the structure over deep standoff conditions.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

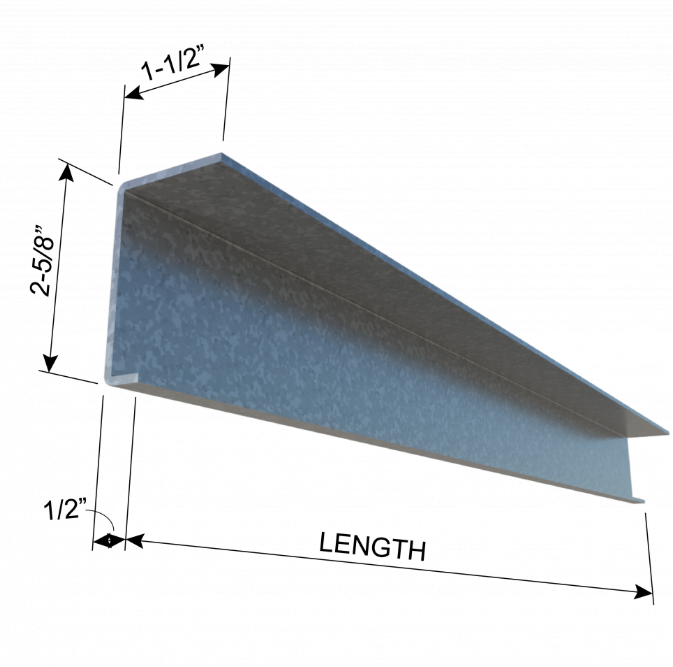

• Size: 1-1/2" x 2-5/8" x 24" (leg x leg x length)
• 1-1/2" x 2-5/8" legs plus a 1/2" return; unpunched
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing, bypass slab-edge standoff connections

Packaging: Sold individually or by the box of 10.

Manufacturer: View the Extended SwiftClip™ LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
