ClarkDietrich LE683 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 3-1/4 in., 14 ga
Each
$1.94
Sale price
$1.94
Regular price
Skip to product information
ClarkDietrich LE683 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 3-1/4 in., 14 ga
$1.94
Sale price
$1.94
Regular price
LE683 is the 68mil (14ga) version of the 3-1/4" SwiftClip™ LE-Series rigid clip, stepping up from 54mil steel where the connection needs more capacity in the same footprint. The 1-1/2" x 3" leg profile fits between stud flanges and handles CRC lateral bracing and header and sill work in cold-formed steel framing.
Product Information
- Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

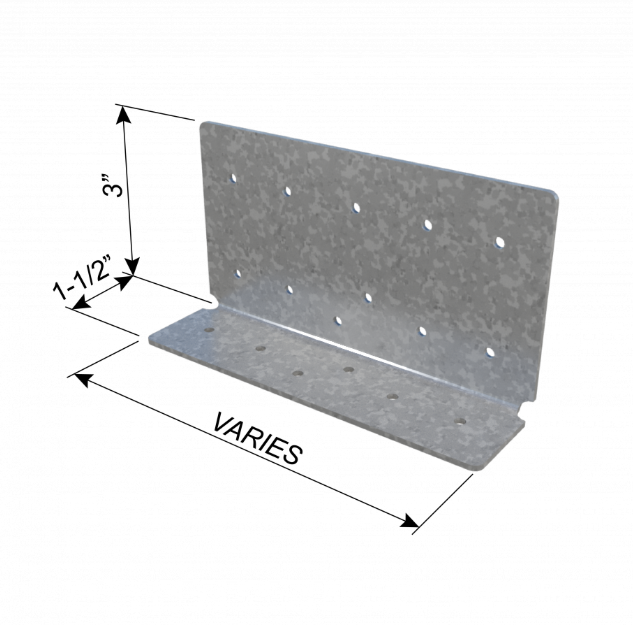

- Size: 1-1/2" x 3" x 3-1/4" (leg x leg x length)
- Legs: 1-1/2" and 3", pre-punched for screw attachment
- Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
- Coating: G90 (Z275) hot-dipped galvanized
- Meets or exceeds ASTM A653/A653M
- Common applications: CRC lateral bracing, header and sill openings
Packaging: Sold individually or by the bucket of 100.
Manufacturer: View the SwiftClip™ 150 x 300 LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
