ClarkDietrich LE6830 SwiftClip LE-Series Rigid Clip - 1-1/2 x 2-5/8 x 30 in., 14 ga

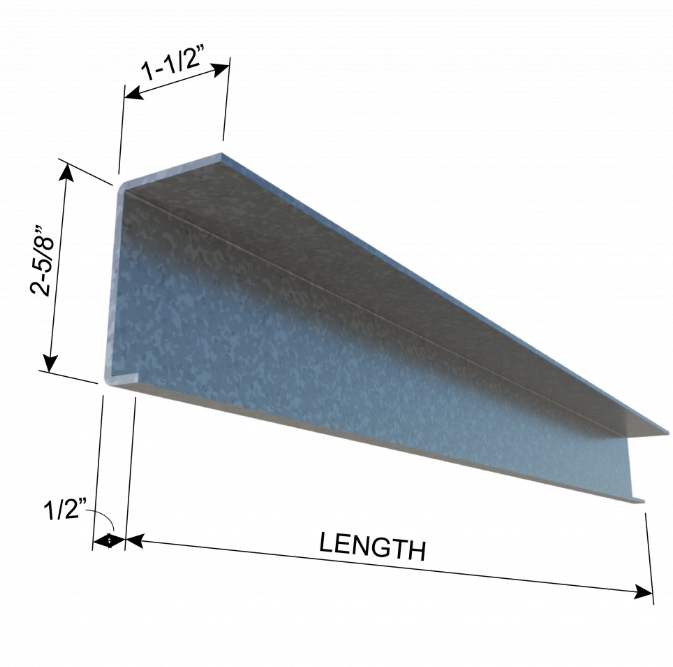

LE6830 is a 30" Extended SwiftClip™ LE-Series rigid clip formed from 68mil (14ga) steel with a 1/2" return stiffening the 2-5/8" leg. That return is what keeps a clip this long stable under load, and it is used to attach exterior studs to the structure in deep-standoff curtain wall framing.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Size: 1-1/2" x 2-5/8" x 30" (leg x leg x length)
• 1-1/2" x 2-5/8" legs plus a 1/2" return; unpunched
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Common applications: curtain wall framing, bypass slab-edge standoff connections

Packaging: Sold individually or by the box of 10.

Manufacturer: View the Extended SwiftClip™ LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
