ClarkDietrich LE973 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 3-1/4 in., 12 ga

LE973 is the heavy-gauge 97mil (12ga) member of the SwiftClip™ LE-Series rigid clip family at 3-1/4" long. With 1-1/2" and 3" legs in the same compact footprint as the lighter gauges, it is used where a short cold-formed steel framing connection has to carry a load the 54mil and 68mil clips will not.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

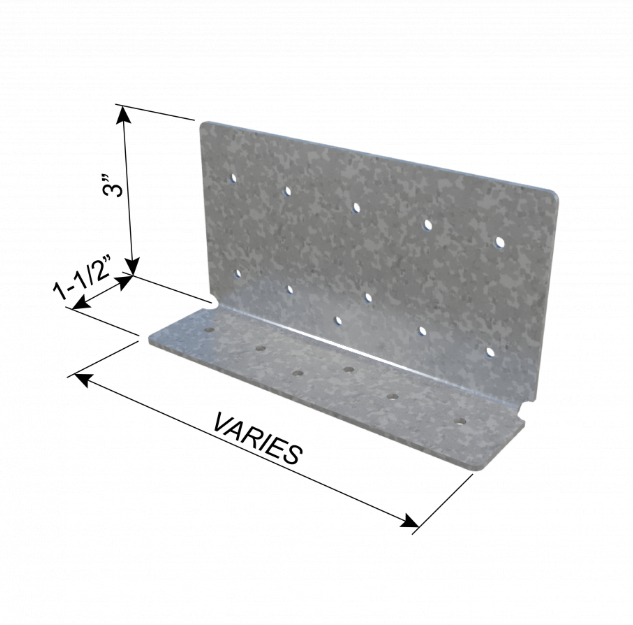

• Size: 1-1/2" x 3" x 3-1/4" (leg x leg x length)
• Legs: 1-1/2" and 3", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: high-load rigid connections, CRC lateral bracing

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the SwiftClip™ 150 x 300 LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
