ClarkDietrich LE975 SwiftClip LE-Series Rigid Clip - 1-1/2 x 3 x 5-1/2 in., 12 ga

LE975 is a 97mil (12ga) SwiftClip™ LE-Series rigid clip, 5-1/2" tall with 1-1/2" and 3" pre-punched legs. The heaviest gauge in the series, it is specified for floor joist hanger and truss connections in cold-formed steel framing where load demand outruns the 68mil clip of the same size.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

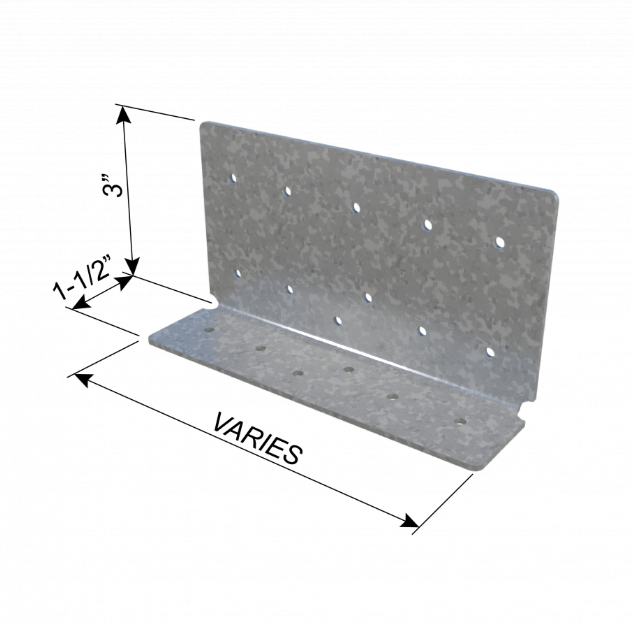

• Size: 1-1/2" x 3" x 5-1/2" (leg x leg x length)
• Legs: 1-1/2" and 3", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hangers, truss connections, high-load rigid connections

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the SwiftClip™ 150 x 300 LE-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
