ClarkDietrich LGPW24 Pony Wall Lite Support - 24 in.

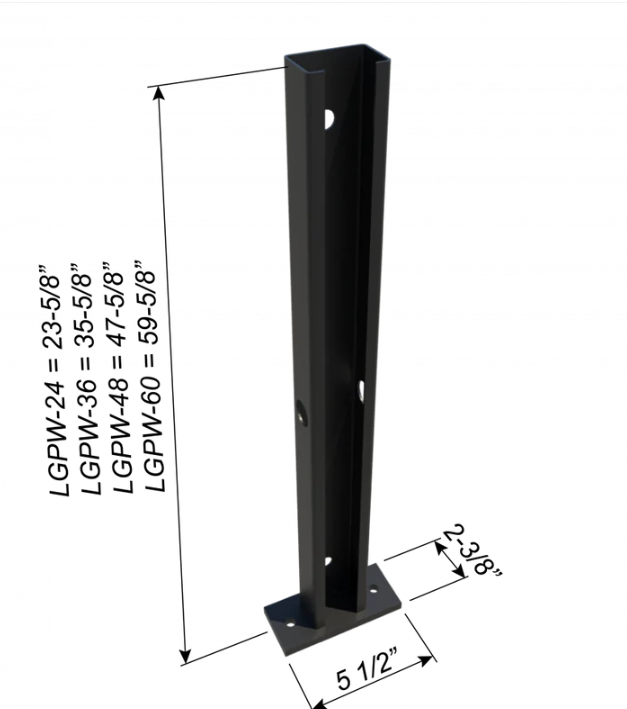

LGPW24 is a 24" Pony Wall Lite pony wall support, a partial-wall-to-floor connection that carries out-of-plane load on cantilevered pony walls and knee walls left unsupported at the top track. Load transfers to the floor through a welded 2-3/8" x 5-1/2" x 3/8" base plate.

Product Information

• Series: Pony Wall Lite
• Nominal height: 24"
• Stud thickness: 54 mil (16 gauge), 0.0566 in.
• Stud material: Structural Grade 50 (ST50H), 50 ksi
• Base plate: ASTM A36 hot-rolled steel, welded to the stud
• Meets or exceeds ASTM A36, A653/A653M, and A1003
• Common applications: cantilevered partial walls and pony walls, knee walls unsupported at the top track

Packaging: Sold individually.

Manufacturer: View the Pony Wall page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
