ClarkDietrich LGPW60 PONY WALL LITE (16 GA) 60IN

Formetal LGPW60 54 mils (16 gauge) Pony Wall Support | 60"

The ClarkDietrich Pony Wall Lite is a partial-wall-to-floor connection that supports out-of-plane loads on cantilevered pony walls and knee walls unsupported at the top track. Loads transfer to the floor through a welded base plate. The Lite series uses a 16-gauge stud for residential and light-commercial partial walls up to 60" tall.

Product Specifications

• SKU: LGPW60

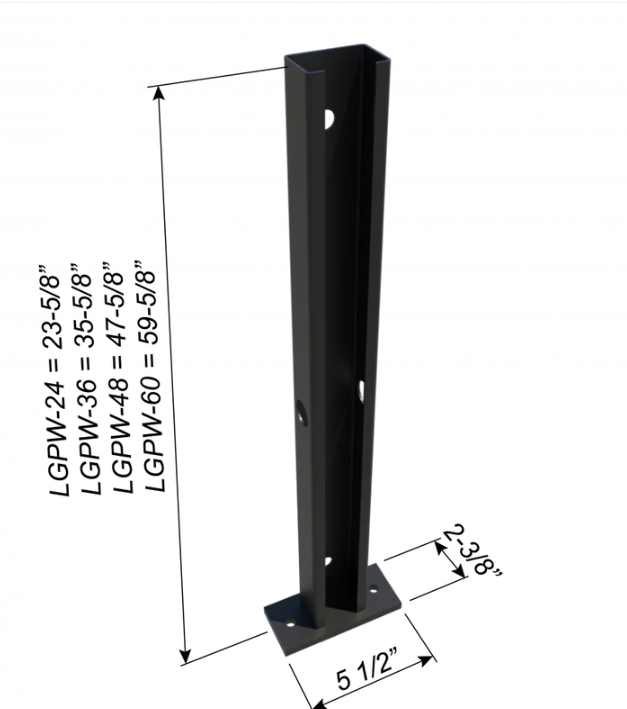

• Overall Height: 59-5/8"
• Series: Pony Wall Lite
• Stud Thickness: 0.054" | 54 mils | 16 gauge
• Base Plate: 2-3/8" wide x 5-1/2" long, 3/8" thick ASTM A36 hot-rolled steel
• Stud Material: Structural Grade 50 (ST50H), 50 ksi (340 MPa)
• Standards: ASTM A36, A653/A653M, A1003
• Weight: 7.0 lbs per piece
• Packaging: Sold individually

Common Applications

• Cantilevered partial walls and pony walls
• Knee walls unsupported at the top track
• Half-height and railing walls
• Out-of-plane load transfer to the floor system

Installation

• Anchor the base plate to the floor structure as specified by the Engineer of Record (EOR).
• Attach framing studs to both flanges of the Pony Wall support.
• Use a minimum 16 gauge stud member with this connector.
