ClarkDietrich LS683 SwiftClip LS-Series Rigid Clip - 1-1/2 x 1-1/2 x 3-1/4 in., 14 ga
$1.30
Sale price
$1.30
Regular price
LS683 is a 68mil (14ga) SwiftClip™ LS-Series rigid clip with 1-1/2" legs and a 3-1/4" length. The L-shaped profile fits between the stud flanges, so a shorter clip does not have to be special-ordered, and this size is stocked for header and sill openings in cold-formed steel framing.
Product Information
- Thickness: 68 mil (14 gauge), 0.0713 in. design thickness

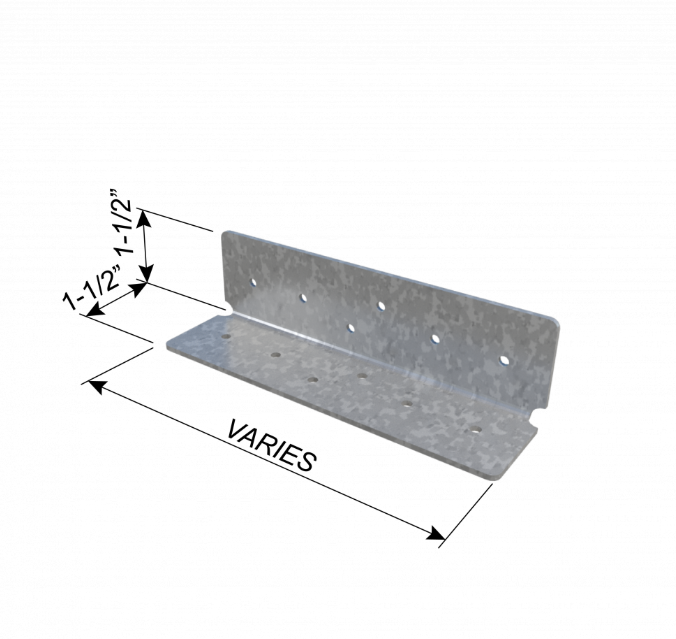

- Size: 1-1/2" x 1-1/2" x 3-1/4" (leg x leg x length)
- Legs: 1-1/2" and 1-1/2", pre-punched for screw attachment
- Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
- Coating: G90 (Z275) hot-dipped galvanized
- Meets or exceeds ASTM A653/A653M
- Common applications: header and sill openings
Packaging: Sold individually or by the bucket of 300.
Manufacturer: View the SwiftClip™ 150 x 150 LS-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
