ClarkDietrich LS685 SwiftClip LS-Series Rigid Clip - 1-1/2 x 1-1/2 x 5-1/2 in., 14 ga

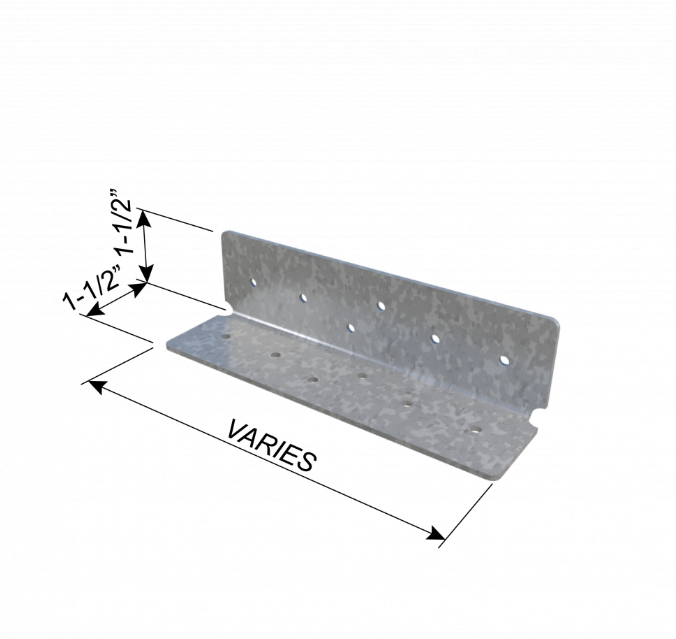

The LS685 SwiftClip™ LS-Series rigid clip pairs 68mil (14ga) steel with 1-1/2" x 1-1/2" legs at 5-1/2" long. Holes are punched on both legs for quick screw placement, and it is commonly called out for header and sill openings and floor joist hangers.

Product Information

• Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
• Size: 1-1/2" x 1-1/2" x 5-1/2" (leg x leg x length)
• Legs: 1-1/2" and 1-1/2", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: header and sill openings and floor joist hangers

Packaging: Sold individually or by the bucket of 200.

Manufacturer: View the SwiftClip™ 150 x 150 LS-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
