ClarkDietrich LS689 SwiftClip LS-Series Rigid Clip - 1-1/2 x 1-1/2 x 9-1/4 in., 14 ga
Each
$4.40
Sale price
$4.40
Regular price
Skip to product information
ClarkDietrich LS689 SwiftClip LS-Series Rigid Clip - 1-1/2 x 1-1/2 x 9-1/4 in., 14 ga
$4.40
Sale price
$4.40
Regular price

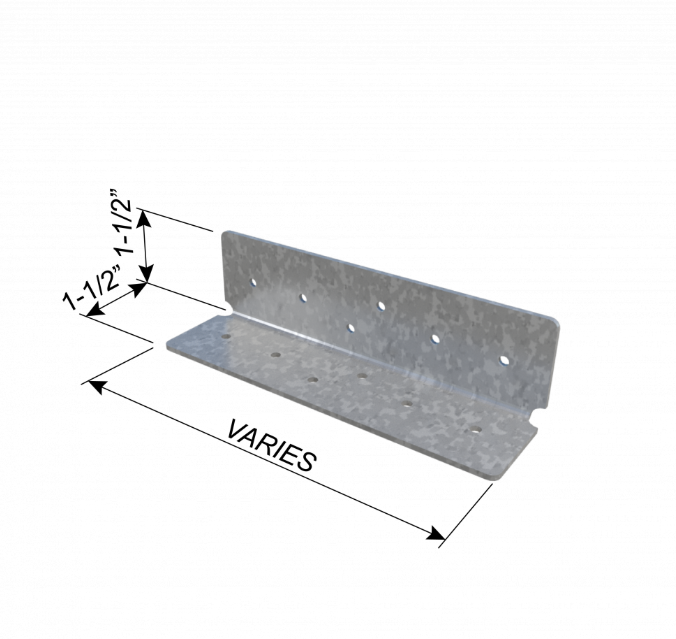

At 9-1/4" long in 68mil (14ga) steel, LS689 is a SwiftClip™ LS-Series rigid clip built for floor joist hanger connections. The 1-1/2" x 1-1/2" legs are pre-punched full height, with holes sized to take CRC lateral bracing.
Product Information
- Thickness: 68 mil (14 gauge), 0.0713 in. design thickness
- Size: 1-1/2" x 1-1/2" x 9-1/4" (leg x leg x length)
- Legs: 1-1/2" and 1-1/2", pre-punched for screw attachment
- Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
- Coating: G90 (Z275) hot-dipped galvanized
- Meets or exceeds ASTM A653/A653M
- Common applications: floor joist hanger connections
Packaging: Sold individually or by the bucket of 100.
Manufacturer: View the SwiftClip™ 150 x 150 LS-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
