LS973 is the 12 gauge, 3-1/4" member of the SwiftClip™ LS-Series rigid clip range. Its compact 1-1/2" x 1-1/2" leg profile seats inside the stud flanges in metal stud framing, and the punched hole pattern suits header and sill openings.
Product Information
- Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

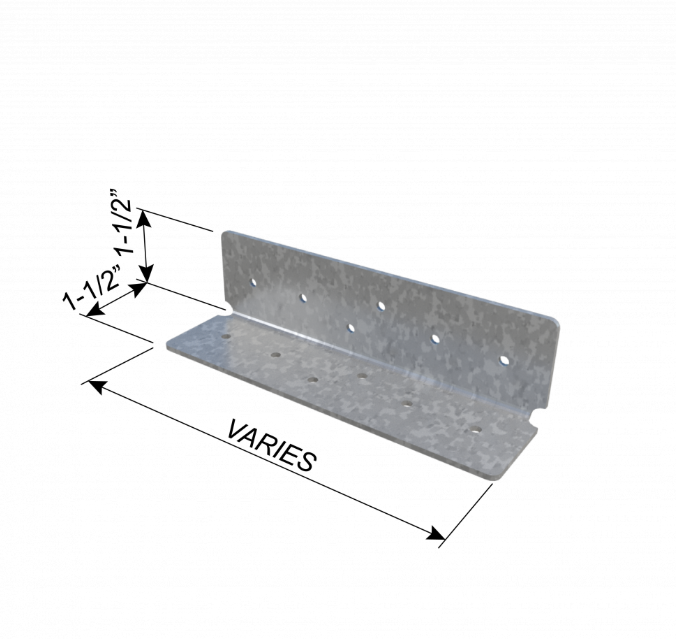

- Size: 1-1/2" x 1-1/2" x 3-1/4" (leg x leg x length)
- Legs: 1-1/2" and 1-1/2", pre-punched for screw attachment
- Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
- Coating: G90 (Z275) hot-dipped galvanized
- Meets or exceeds ASTM A653/A653M
- Common applications: header and sill openings
Packaging: Sold individually or by the bucket of 200.
Manufacturer: View the SwiftClip™ 150 x 150 LS-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
