ClarkDietrich LS979 SwiftClip LS-Series Rigid Clip - 1-1/2 x 1-1/2 x 9-1/4 in., 12 ga

The LS979 SwiftClip™ LS-Series rigid clip pairs 97mil (12ga) steel with 1-1/2" x 1-1/2" legs at 9-1/4" long. Holes are punched on both legs for quick screw placement, and it is commonly called out for floor joist hanger connections.

Product Information

• Thickness: 97 mil (12 gauge), 0.1017 in. design thickness

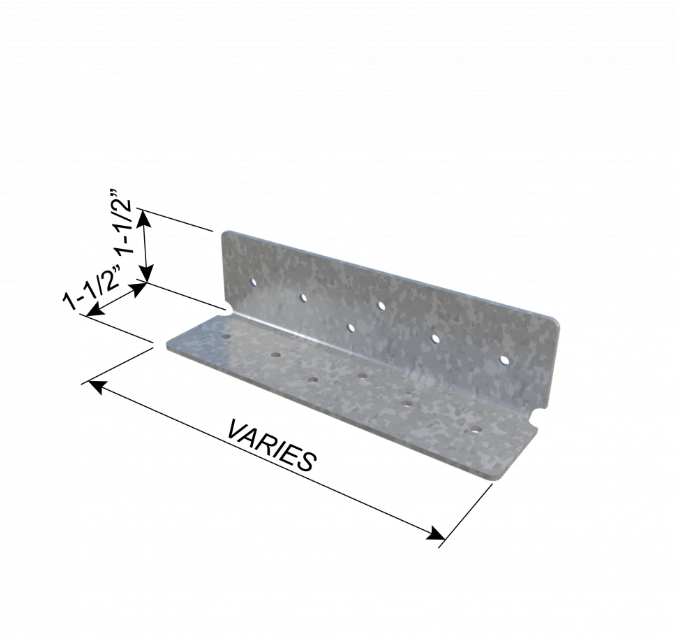

• Size: 1-1/2" x 1-1/2" x 9-1/4" (leg x leg x length)
• Legs: 1-1/2" and 1-1/2", pre-punched for screw attachment
• Material: Structural Grade 50 Type H (ST50H), 50 ksi minimum yield
• Coating: G90 (Z275) hot-dipped galvanized
• Meets or exceeds ASTM A653/A653M
• Common applications: floor joist hanger connections

Packaging: Sold individually or by the bucket of 50.

Manufacturer: View the SwiftClip™ 150 x 150 LS-Series page on ClarkDietrich.com for full specifications, load tables, and submittal documents.
